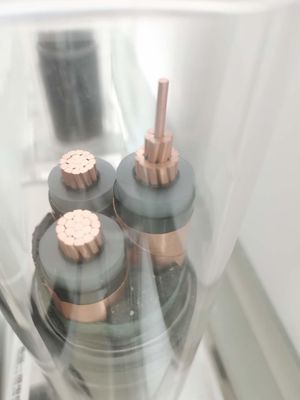

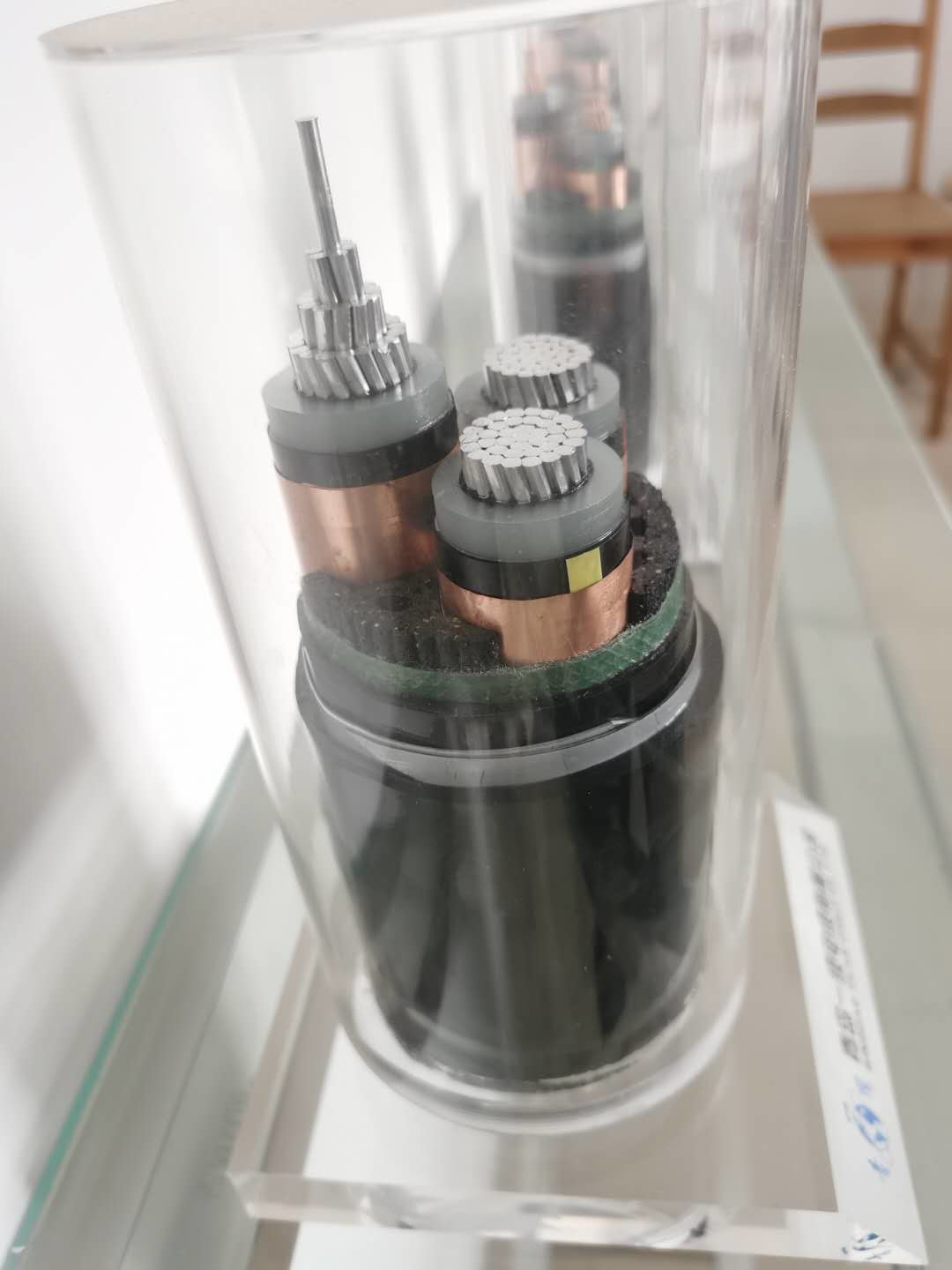

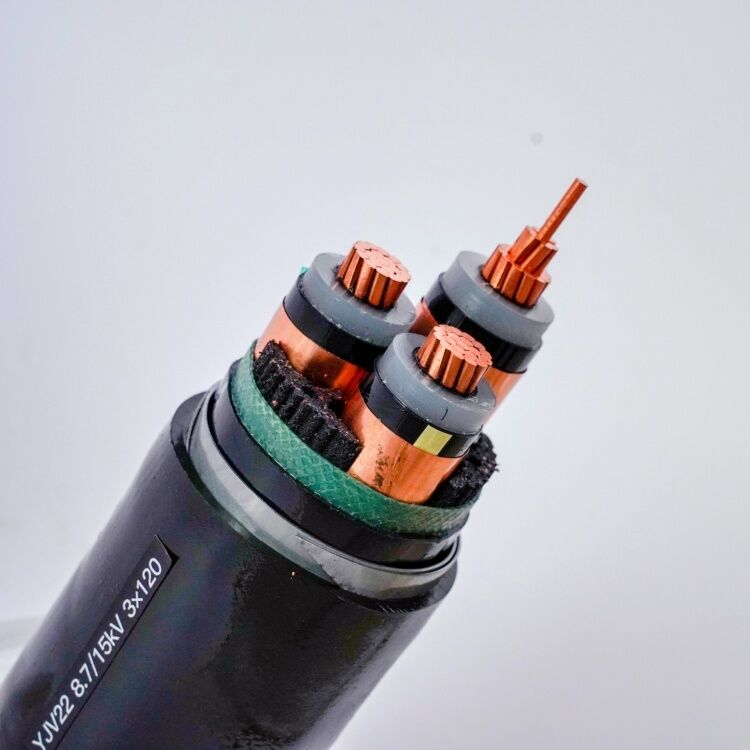

Copper PVC Sheath XLPE Insulated Cable IEC 60502-1 Standard
XLPE Insulated Cable is used as electric service entrance from the power distribution network until the meter panel (especiallt where it is required to prevent "black" lossed or electric power robbery),and as feeder cable from the meters panel until the panel of general distribution panel.just as it is specificed in the national electrical code.
Physical and Electrical Characteristics
No.cores x | Insulation | Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
cross-sec. | thickness | thickness | approx. | approx. | |||
Nominal | |||||||
Phase | Neutral | value | |||||
mm² | mm | mm | mm | mm | kg / km | A | A |
3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 |
164 |
What is cross-linked polyethylene/XLPE?
Cross-linked polyethylene, also known as XLPE, is a form of insulation produced by heating and high pressure. One way to produce XLPE insulation is to irradiate the compound. Another method is to use peroxide to chemically crosslink the compound. The most important attribute of XLPE is its electrical properties. Cables with XLPE insulation can carry large currents and high voltages. A common application of XLPE is medium and high voltage applications. The physical and electrical properties of XLPE make it an ideal choice for use in industrial environments.
Common types of XLPE wires or cables
Building wire (XHHW)
Car line (GXL)
power cable
Control Cable
Direct buried thread
