| MOQ: | Negotiable |
| Price: | Negotiable |
| Standard Packaging: | Iron-wooden Drum or Whole Wooden Drum |
| Delivery Period: | 8-15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100km per Month |

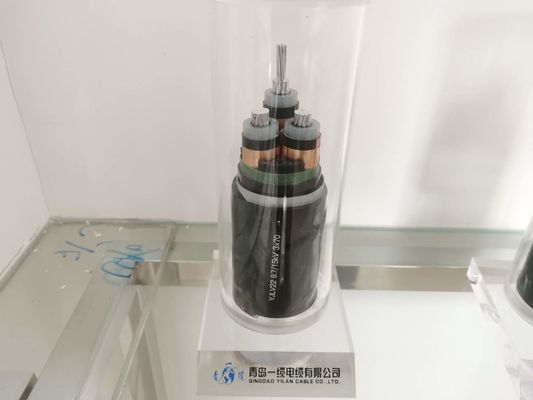

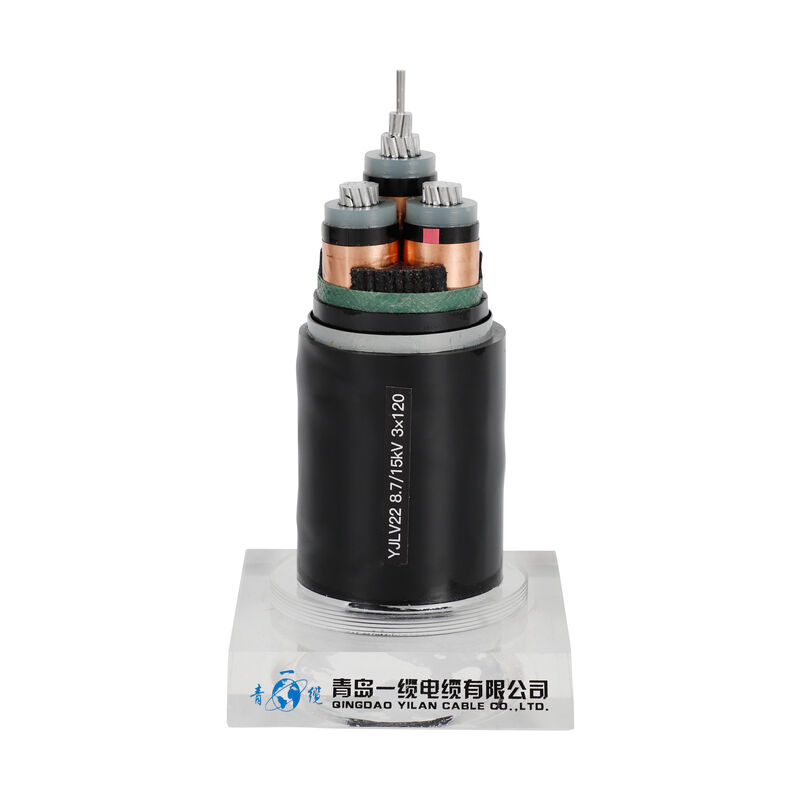

3×6mm2 XLPE Insulated Cable For Transmission And Distribution Lines
XLPE Insulated Cable is used for overhead service drop applications,such as:street lighting.outdoor lighting and temporary service for construction.To be used at voltages of 600v phase-to-phase or less and at at conductor temperatures not to exceed 75℃ for polyethylene(PE) insulated conductors or 90℃ cross-linked polyethylene(XLPE) insulated conductors.
Physical and Electrical Characteristics
| No.cores x | Insulation | Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
| cross-sec. | thickness | thickness | approx. | approx. | |||
| Nominal | |||||||
| Phase | Neutral | value | |||||
| mm² | mm | mm | mm | mm | kg / km | A | A |
| 3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
| 3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
| 3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
| 3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
| 3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
| 3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 |
164 |
Structure
Conductor: Ordinary round stranded copper conductor, in line with IEC 60228 level 2
Insulation: PVC, XLPE
Inner layer: PVC
Armoring: wire, steel tape, aluminum wire
According to requirements, sheath: PVC meets IEC 60502, black
Note: Insulation color such as according to standard or requirement
Single core 25mm2 power cable
Conductor characteristics: copper
Insulation: Black XLPE
Insulation thickness: 0.7mm
Sheath: PVC
Sheath thickness: 1.4mm
approximately. Cable weight: 294 kg / km
Total cable diameter: 10.7mm
Maximum DC resistance at 20C: 0.727
Application
Used as a distribution and transmission line with a rated voltage of 0.6/1kV.
Suitable for burying in the ground, laying wells and underwater. Able to withstand certain shaft tension.
International standards: IEC 60502-1, IEC 60228;
Requirements of other standards such as ASTM BS, DIN and ICEA
|
|
