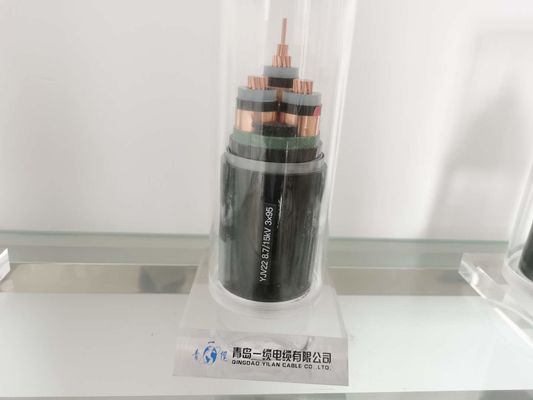

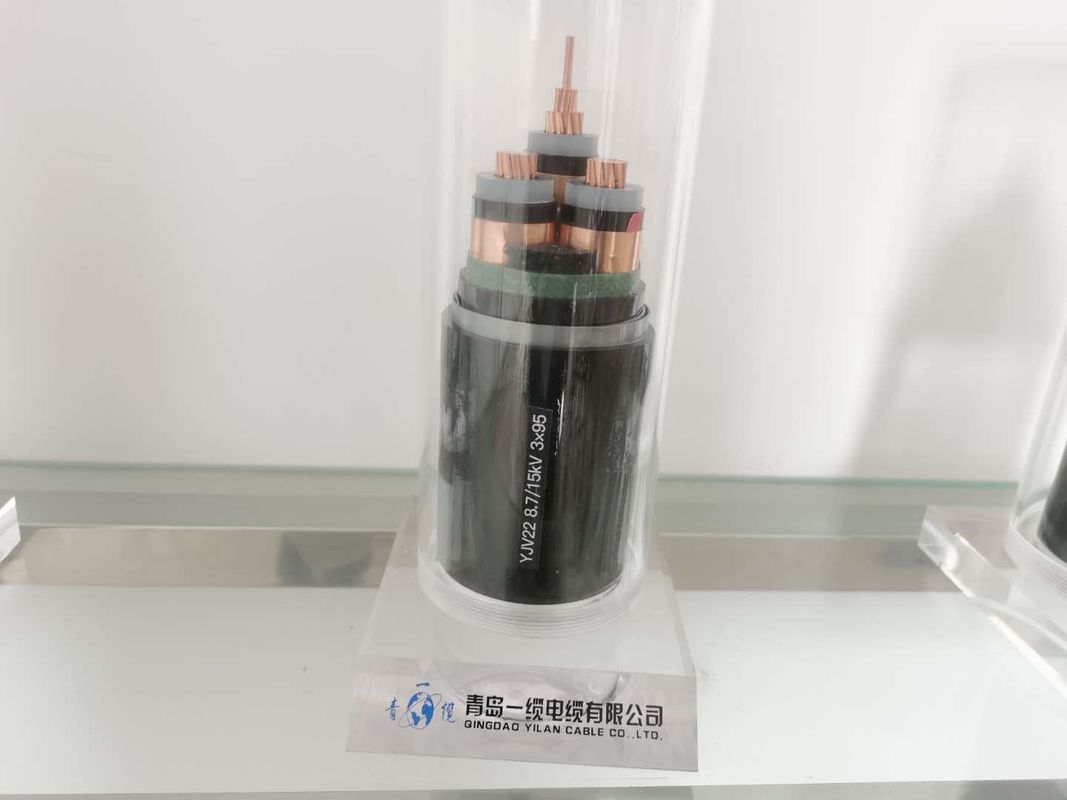

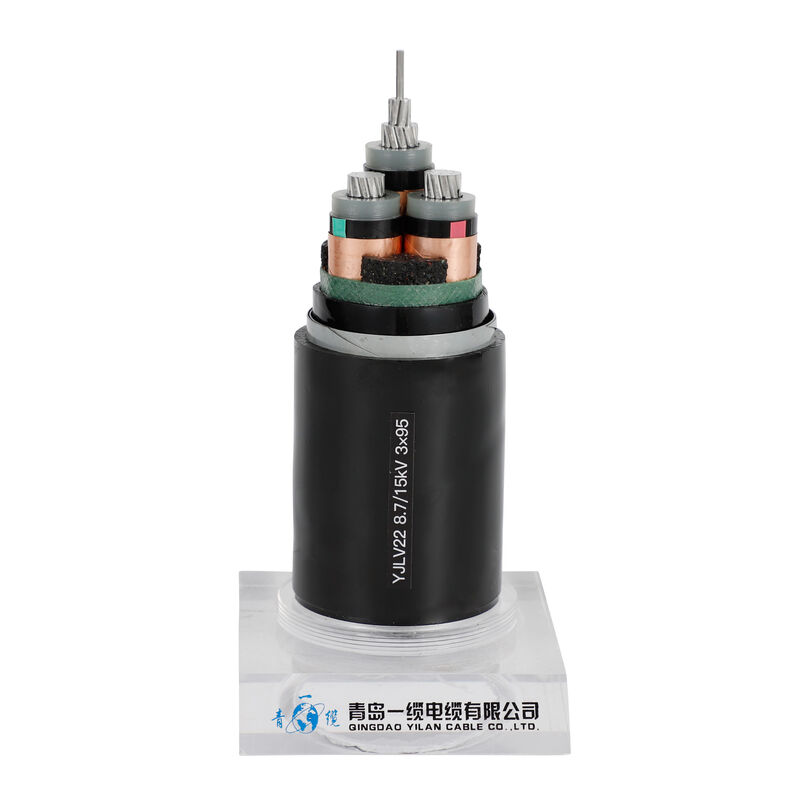

XLPE/cross-linked polyethylene cable with sheath
XLPE/cross-linked polyethylene
One Cable is a leading supplier of customized and stock cross-linked polyethylene (XLPE) wires or cables. One cable can provide various specifications and specifications of AWG size, rated voltage, compound, shielding structure and number of conductors XLPE wire and cable, including stock and customized.
Physical and Electrical Characteristics
| No.cores x | Insulation | Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
| cross-sec. | thickness | thickness | approx. | approx. | |||
| Nominal | |||||||
| Phase | Neutral | value | |||||
| mm² | mm | mm | mm | mm | kg / km | A | A |
| 3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
| 3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
| 3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
| 3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
| 3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
| 3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 |
164 |
What is cross-linked polyethylene/XLPE?
Cross-linked polyethylene, also known as XLPE, is a form of insulation produced by heating and high pressure. One way to produce XLPE insulation is to irradiate the compound. Another method is to use peroxide to chemically crosslink the compound. The most important attribute of XLPE is its electrical properties. Cables with XLPE insulation can carry large currents and high voltages. A common application of XLPE is medium and high voltage applications. The physical and electrical properties of XLPE make it an ideal choice for use in industrial environments.
Common types of XLPE wires or cables
Building wire (XHHW)
Car line (GXL)
power cable
Control Cable
Direct buried thread
Our products are sold all over the world, you can rest assured.
