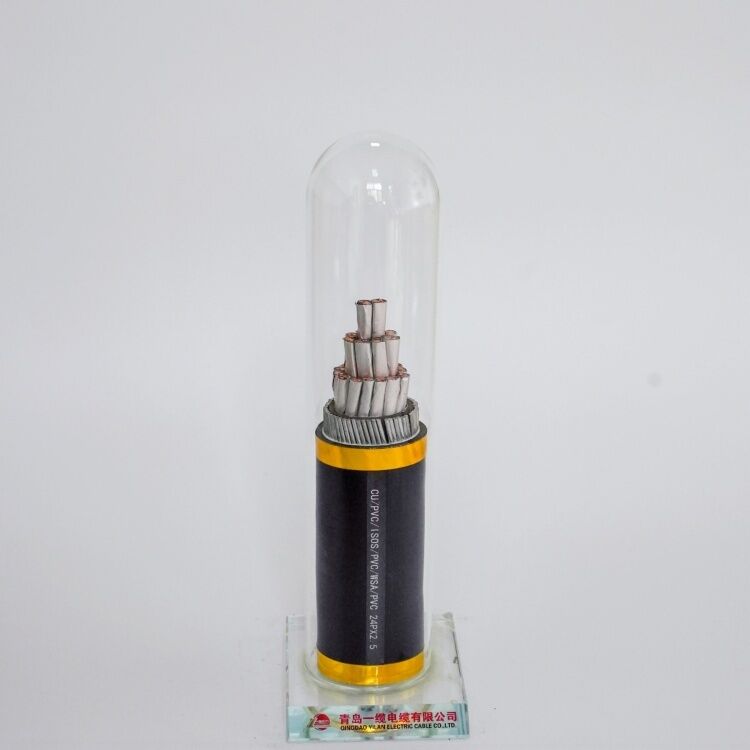

Low Voltage 3 Core Xlpe Insulated Cable
Cross-linked polyethylene insulated PVC sheathed power cable with excellent thermo-mechanical properties, excellent electrical properties and chemical resistance. It also has the advantages of simple structure, light weight and no drop limit. It is a new type of cable widely used in city power grids, mines and factories. The maximum rated working temperature of the cross-linked polyethylene insulated power cable conductor is 90°C, which is higher than that of PVC insulated and polyethylene insulated cables, further increasing the cable's load capacity.
| Voltage rating for XLPE Power Cable | No. x Nominal Cross Section of Conductor No. x mm2 | |||||||
| 1 core | 2 core | 3 core | 3+1 core | 4core | 3+2 core | 4+1 core | 5 core | |
| 0.6/1 kV | 1x4 mm2 | 2x4 mm2 | 3x4 mm2 | 3x4 mm2 + 1x2.5mm2 | 4x4 mm2 | 3x4 mm2 + 2x2.5mm2 | 4x4 mm2 + 1x2.5mm2 | 5x2.5 mm2 |
| 1x6 mm2 | 2x6 mm2 | 3x6 mm2 | 3x6 mm2 + 1x4 mm2 | 4x6 mm2 | 3x6 mm2 + 2x4 mm2 | 4x6 mm2 + 1x4 mm2 | 5x4 mm2 | |
| 1x10 mm2 | 2x10 mm2 | 3x10 mm2 | 3x10 mm2 + 1x6 mm2 | 4x10 mm2 | 3x10 mm2 + 2x6 mm2 | 4x10 mm2 + 1x6 mm2 | 5x6 mm2 | |
| 1x16 mm2 | 2x16 mm2 | 3x16mm2 | 3x16 mm2 + 1x10 mm2 | 4x16 mm2 | 3x16 mm2 + 2x10 mm2 | 4x16 mm2 + 1x10 mm2 | 5x10 mm2 | |
| 1x 25 mm2 | 2x 25 mm2 | 3x 25 mm2 | 3x25 mm2 + 1x16mm2 | 4x25 mm2 | 3x25 mm2 + 2x16mm2 | 4x25 mm2 + 1x16mm2 | 5x16 mm2 | |
| 1x35 mm2 | 2x35 mm2 | 3x 35 mm2 | 3x35 mm2 + 1x16mm2 | 4x35 mm2 | 3x35 mm2 + 2x16mm2 | 4x35 mm2 + 1x16mm2 | 5x25 mm2 | |
| 1x50 mm2 | 2x50 mm2 | 3x 50 mm2 | 3x50 mm2 + 1x25mm2 | 4x50 mm2 | 3x50 mm2 + 2x25mm2 | 4x50 mm2 + 1x25mm2 | 5x35 mm2 | |
| 1x70 mm2 | 2x70 mm2 | 3x 70 mm2 | 3x70 mm2 + 1x35mm2 | 4x70 mm2 | 3x70 mm2 + 2x35mm2 | 4x70 mm2 + 1x35mm2 | 5x50 mm2 | |
| 1x95 mm2 | 2x95 mm2 | 3x 95 mm2 | 3x95 mm2 + 1x50mm2 | 4x95 mm2 | 3x95 mm2 + 2x50mm2 | 4x95 mm2 + 1x50mm2 | 5x70 mm2 | |
| 1x120 mm2 | 2x120 mm2 | 3x 120 mm2 | 3x120mm2 + 1x70mm2 | 4x120 mm2 | 3x120mm2 + 2x70mm2 | 4x120mm2 + 1x70mm2 | 5x95 mm2 | |
| 1x150 mm2 | 2x150 mm2 | 3x 150 mm2 | 3x150mm2 + 1x70mm2 | 4x150 mm2 | 3x150mm2 + 2x70mm2 | 4x150mm2 + 1x70mm2 | ||
| 1x185 mm2 | 2x185 mm2 | 3x 185 mm2 | 3x185mm2 + 1x95mm2 | 4x185 mm2 | 3x185mm2 + 2x95mm2 | 4x185mm2 + 1x95mm2 | ||
| 1x240 mm2 | 3x 240 mm2 | 3x240mm2 + 1x120mm2 | 4x240 mm2 | 3x240mm2 + 2x120mm2 | 4x240mm2 + 1x120mm2 | |||
| 1x300 mm2 | 3x 300 mm2 | 3x300mm2 + 1x150mm2 | 4x300 mm2 | 3x300mm2 + 2x150mm2 | 4x300mm2 + 1x150mm2 | |||
| 1x400 mm2 | ||||||||
| 1x500 mm2 | ||||||||
Application:
1. Operating Features:
The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.
2. Bending Radius of the Cable:
Single Core Cable: Non Armored Cable 20D, Armored Cable 15D.
Cores Cable: Non Armored Cable 15D, Armored Cable 12D.
Usage: The product is suitable for use in power distribution lines or fixed installations with rated power- frequency voltage up to and including 1Kv, AC 50Hz.
