Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HOLD-ONE |
Certification: | CE/IEC/KEMA/VDE |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | Iron-wooden Drum or Whole Wooden Drum |
Delivery Time: | 8-15 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100km per Month |
Detail Information |
|||
Name: | Copper Conductor Cable | Conductor Material:: | Copper |
---|---|---|---|
Standard: | IEC 60502-1 | Outer Sheath:: | PVC |
Color: | Customized | Type: | XLPE Underground Cable |
High Light: | 0.6kV Xlpe Insulated Power Cable,Underground Xlpe Insulated Power Cable,4mm Xlpe Insulated Power Cable |
Product Description

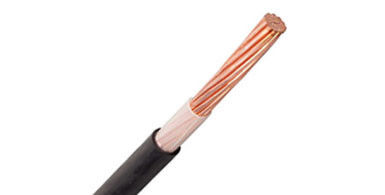

0.6kV / 1kV XLPE insulated PVC sheathed power cable
XLPE insulated cable
Single-core XLPE insulated cables/wires have ordinary annealed solid or stranded round copper conductors with XLPE insulation and PVC sheath. Also called XLPE cable or CU/XLPE/PVC 0.6/1000V. Single-core insulated cables can be used to comply with AS 5000.1, IEC 60502 and BS7889 standards.
Holdone provides customers with high quality 1.5mm, 2.5mm, 4mm, 6mm, 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm single core cables/wires. Welcome to contact us!
Physical and Electrical Characteristics
No.cores x | Insulation | Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
cross-sec. | thickness | thickness | approx. | approx. | |||
Nominal | |||||||
Phase | Neutral | value | |||||
mm² | mm | mm | mm | mm | kg / km | A | A |
3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 |
164 |
Description of single core power cord (XLPE insulation)
Rated temperature: 90℃
Rated voltage: 600/1000V
Reference standard: IEC60502
Conductor: Shaped and round stranded copper conductor
Insulation: insulated with cross-linked polyethylene compound
PVC bed
Flame-retardant PVC sheath as a whole
Application of single-core power cable (cross-linked polyethylene insulation)
•Used for fixed installation of power transmission and distribution systems, tunnels and pipelines, etc.
•For situations that should not be subjected to external mechanical forces
