Four Core Copper Conductor XLPE Insulated Cable IEC 60502-1

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: CE/IEC/KEMA/VDE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Iron-wooden Drum or Whole Wooden Drum
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 100km per Month
  • Detail Information
  • Product Description

Detail Information

Name: Copper Conductor Cable Conductor Material:: Copper
Standard: IEC 60502-1 Outer Sheath:: PVC
Color: Customized Type: XLPE Underground Cable
High Light:

Copper Conductor XLPE Insulated Cable

,

Four Core XLPE Insulated Cable

,

IEC 60502-1 XLPE Insulated Cable

Product Description

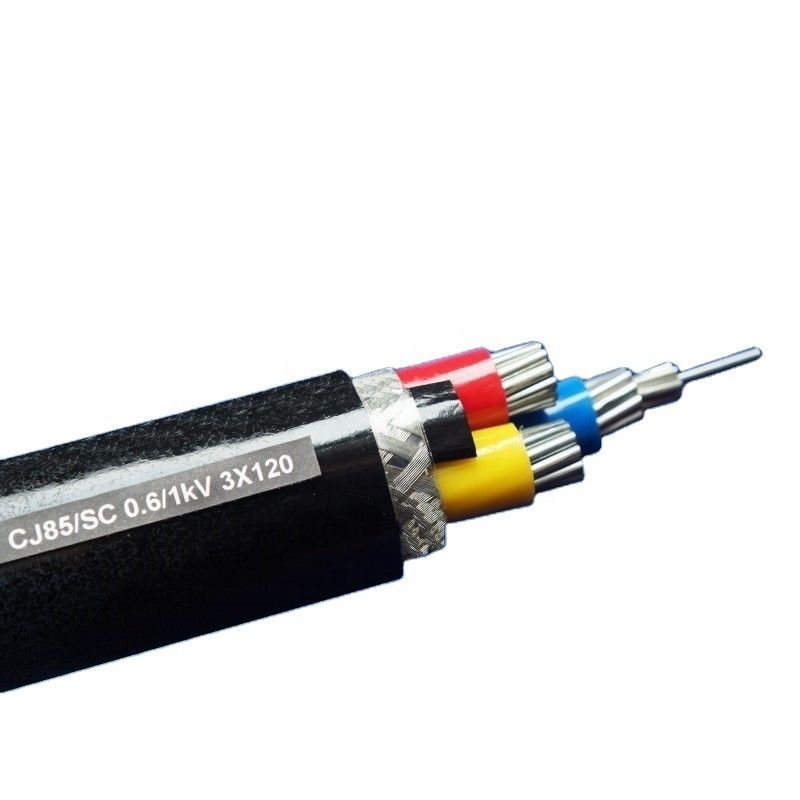

Four Core 100% Pure Copper Conductor XLPE Insulated Power Cable





XLPE Insulation PVC Sheath Cable Construction



Conductor : Stranded Copper Conductor, Cl.2 as per IEC 60228

Insulation : XLPE Insulation

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black



XLPE Insulation PVC Sheath Cable Applications



For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



XLPE Insulation PVC Sheath Cable Standards



International: IEC 60502-1, IEC 60228,

China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage:0.6/1kV

Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core



Physical and Electrical Characteristics



No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
  Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164





Application



Used as a distribution and transmission line with a rated voltage of 0.6/1kV.
Suitable for burying in the ground, laying wells and underwater. Able to withstand certain shaft tension.


International standards: IEC 60502-1, IEC 60228;
Requirements of other standards such as ASTM BS, DIN and ICEA
