Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HOLD-ONE |
Certification: | CE/IEC/KEMA/VDE |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | Iron-wooden Drum or Whole Wooden Drum |
Delivery Time: | 8-15 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100km per Month |
Detail Information |
|||
Name: | Copper Conductor Cable | Conductor Material:: | Copper |
---|---|---|---|
Standard: | IEC 60502-1 | Outer Sheath:: | PVC |
Color: | Customized | Type: | XLPE Underground Cable |
High Light: | PVC Sheath XLPE Insulated Cable,Copper Armored XLPE Insulated Cable,1kv XLPE Insulated Cable |
Product Description

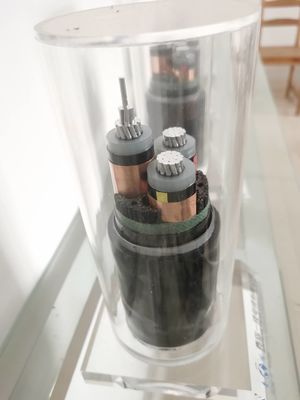

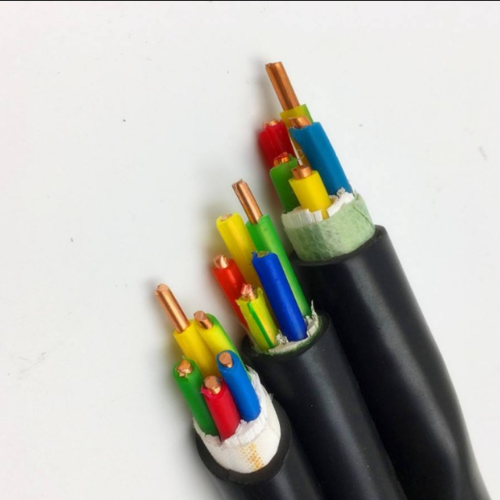

Xlpe insulated copper armored power cable 0.6/1kv
1 . Power cable
Power cables are used for static applications on the ground, internal and external facilities, outdoors, cable trenches, and water, and the cables will not bear large mechanical stress and tensile strain. Due to its extremely low dielectric loss factor (which remains constant throughout its service life) and due to the excellent insulation properties of XLPE material, the conductor shielding layer and the insulating shielding layer of semi-conductive materials are firmly spliced in the longitudinal direction (through A method of extrusion), the cable has high operational reliability. Used in substations, power plants and factories.
2 . Physical and Electrical Characteristics
No.cores x | Insulation | Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
cross-sec. | thickness | thickness | approx. | approx. | |||
Nominal | |||||||
Phase | Neutral | value | |||||
mm² | mm | mm | mm | mm | kg / km | A | A |
3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 |
164 |
Application
Wiring for fire safety circuits, such as fire alarm systems in high-rise buildings, emergency lighting and power supplies, public address and emergency voice communication systems, control and instrumentation services for industrial, commercial and residential complexes.
Special functions on request:
•Oil resistance
• UV resistance
• Flame retardant cat. A, B, C
•Non-flame retardant
•termite
• Rodent
• Low smoke zero halogen
