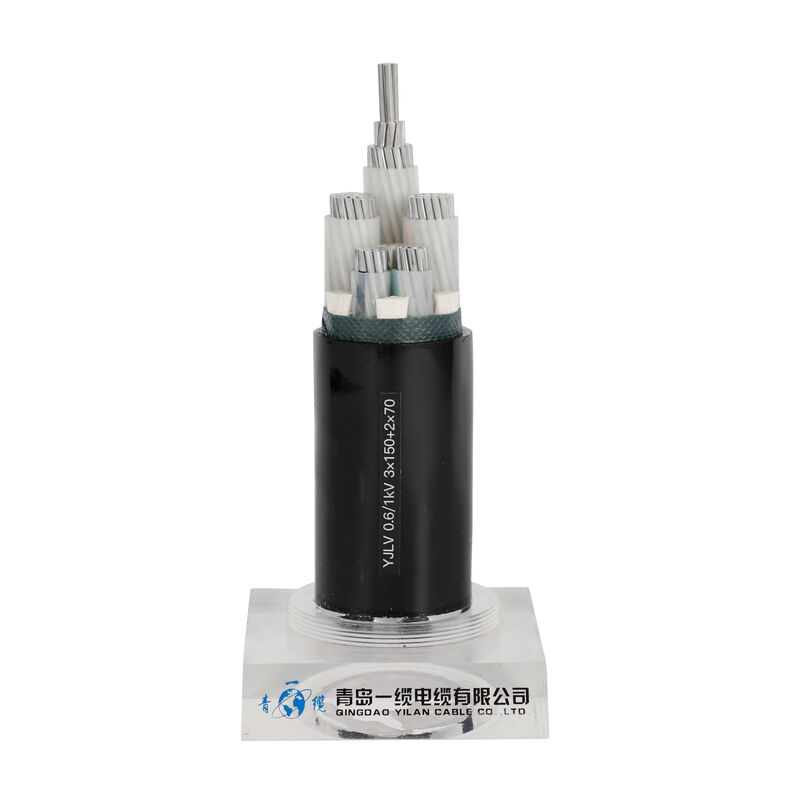

High-voltage armored power cable three cores
1 . Product features and uses:
The cross-linked polyethylene insulated power cable has the characteristics of high mechanical strength, strong environmental stress resistance, excellent electrical performance, and strong current resistance.
Chemical corrosion. In addition, the lightweight and simple product is easy to use. This product is suitable for transmission and distribution systems with a rated voltage of 0.6/1kv.
It has the main characteristics of fire-resistant cables. The cables are not easy to catch fire or continue to burn within a certain range. It is suitable for power stations, subways, tunnels, high-rise buildings, and large-scale
Dense distributed cables in industrial and mining enterprises, oil fields, coal mines and other places.
2 . Physical and Electrical Characteristics
| No.cores x |
Insulation |
Sheath |
Outer Ø |
weight |
Current ratings in air 30℃ |
Current ratings buried 20℃ |
| cross-sec. |
thickness |
thickness |
approx. |
approx. |
| |
Nominal |
| Phase |
Neutral |
value |
| mm² |
mm |
mm |
mm |
mm |
kg / km |
A |
A |
| 3×4+1×2.5 |
0.7 |
0.7 |
1.8 |
12.7 |
277 |
37 |
47 |
| 3×6+1×4 |
0.7 |
0.7 |
1.8 |
13.9 |
363 |
47 |
60 |
| 3×10+1×6 |
0.7 |
0.7 |
1.8 |
16.1 |
527 |
64 |
81 |
| 3×16+1×10 |
0.7 |
0.7 |
1.8 |
18.6 |
766 |
85 |
106 |
| 3×25+1×16 |
0.9 |
0.7 |
1.8 |
22.2 |
1140 |
113 |
137 |
| 3×35+1×16 |
0.9 |
0.7 |
1.8 |
24.6 |
1475 |
139 |
164
|
3 . Application range:
1. Operating characteristics:
Maximum conductor working temperature: 90°C
During short circuit (less than 5 seconds), the maximum temperature of the cable conductor shall not exceed 250°C. When laying cables, the ambient temperature should not be lower than 0°C.
2. The bending radius of the cable:
Single-core cable: non-armored cable 20D, armored cable 15D
Core cable: unarmored cable 15D, armored cable 12D.
Remarks: D represents the actual outer diameter of the cable
