Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HOLD-ONE |
| Certification: | CE/IEC/KEMA/VDE |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Iron-wooden Drum or Whole Wooden Drum |
| Delivery Time: | 8-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100km per Month |
|
Detail Information |
|||
| Name: | Copper Conductor Cable | Conductor Material:: | Copper |
|---|---|---|---|
| Standard: | IEC 60502-1 | Outer Sheath:: | PVC |
| Color: | Customized | Type: | XLPE Underground Cable |
| High Light: | 0.6KV XLPE Insulated Cable,50mm XLPE Insulated Cable,Steel Tape XLPE Insulated Cable |
||
Product Description

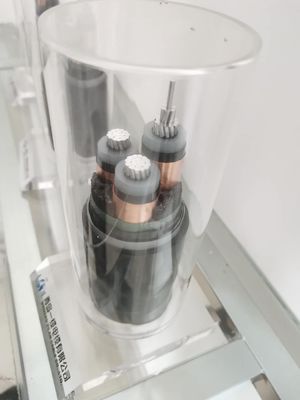

0.6 / 1KV 50mm XLPE insulated steel tape armored power cable
1 . standard
The products are manufactured according to GB12706, IEC60502 and BS6346, VDE, AS/NZS, UL and other standards or according to customer requirements.
2 . usage:
This product is suitable for distribution lines or fixed installations with rated power frequency voltage not exceeding 15Kv and AC 50Hz.
3 . Physical and Electrical Characteristics
| No.cores x | Insulation | Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
| cross-sec. | thickness | thickness | approx. | approx. | |||
| Nominal | |||||||
| Phase | Neutral | value | |||||
| mm² | mm | mm | mm | mm | kg / km | A | A |
| 3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
| 3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
| 3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
| 3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
| 3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
| 3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 |
164 |
4 . Application range:
1. Operating characteristics:
Maximum conductor working temperature: 90°C
During short circuit (less than 5 seconds), the maximum temperature of the cable conductor shall not exceed 250°C. When laying cables, the ambient temperature should not be lower than 0°C.
2. The bending radius of the cable:
Single-core cable: non-armored cable 20D, armored cable 15D
Core cable: unarmored cable 15D, armored cable 12D.
Remarks: D represents the actual outer diameter of the cable
