Power cable single core/three core 16-300mm²
Power cable:
16-300 mm2 power cables, used as power distribution and transmission lines with a rated voltage of 0.6/1kV.
Suitable for burying in the ground, laying wells and underwater. Able to withstand certain shaft tension.
Physical and Electrical Characteristics
| No.cores x | Insulation | Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
| cross-sec. | thickness | thickness | approx. | approx. | |||
| Nominal | |||||||
| Phase | Neutral | value | |||||
| mm² | mm | mm | mm | mm | kg / km | A | A |
| 3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
| 3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
| 3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
| 3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
| 3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
| 3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 |
164 |
Applicable standards:
We can produce according to IEC60502-1, BS 5467, ICEA S-95-658, CSA C22.2, NFC 33-210 / NFC 32-322, AS-NZS 5000.1 and other standards.
Feature:
1. Rated voltage: 0.6 / 1KV
2. Cable core number: 1 core, 2 cores, 3 cores, 4 cores, 5 cores, 3 + 1 cores (3.5 Core), 3 + 2 cores, 4 + 1 cores, etc.
3. The highest conductor working temperature for a long time. PVC insulated
The maximum temperature is 70℃, and the maximum temperature of XLPE insulation is 90℃. PVC insulation temperature is 160℃, XLPE insulation temperature is 250℃.

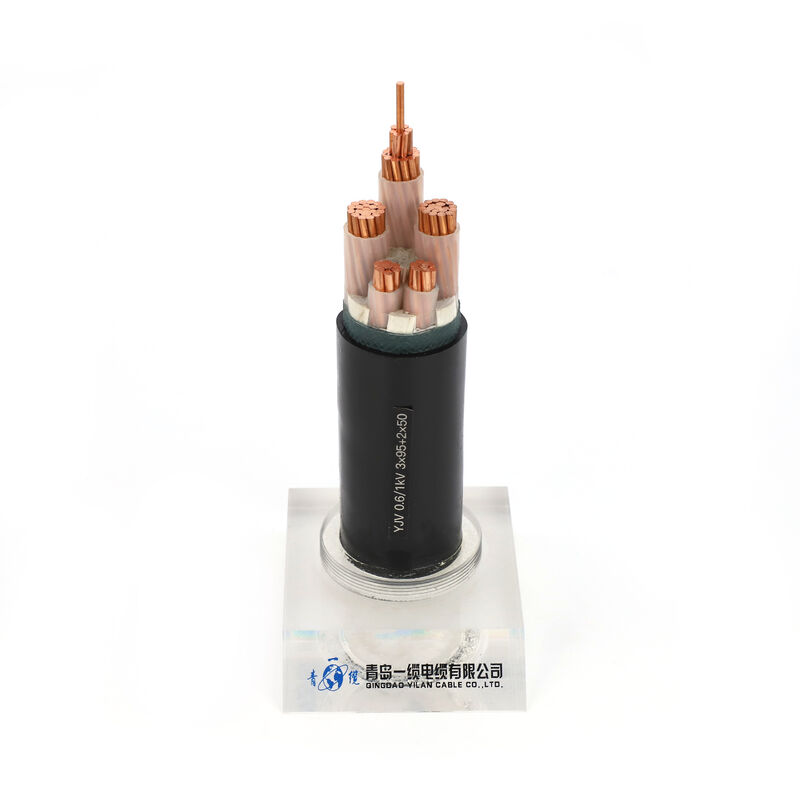

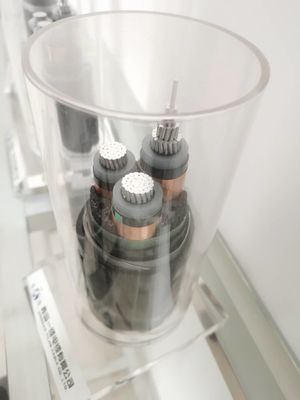

Structure:
Conductor: Cu / Al (solid/multi-strand)
Insulation: XLPE / PVC / PE / LSHF
Inner sheath (applicable if there is an armor layer): PVC / PE
Armour layer (if required): aluminum tape/aluminum wire/steel wire/steel tape
Outer sheath: PVC / PE / LSHF
For outdoor and indoor installation in a humid environment, it should be placed directly on the ground (a well-protected place), pipes, grooves and steel support frames. Used in power transmission and distribution systems of 35kV and below. It can completely replace oil-impregnated paper insulated power cables, and can also partially replace polyvinyl chloride insulated power cables. It is widely used in power, construction, mining, metallurgy, petrochemical and communications fields.
Our products are sold all over the world, you can rest assured.
