low voltage flame retardant power cable
Flexible Electrical Cable
This cable is suitable for industrial and home applications. It is designed for dry, moist and wet open areas as wellas under plaster,
walling and concrete. However, it is not recommended to lay the cable into the compacted concerete. Outerapplication is permitted
only in the case that cable is not exposed to direct sunlights.

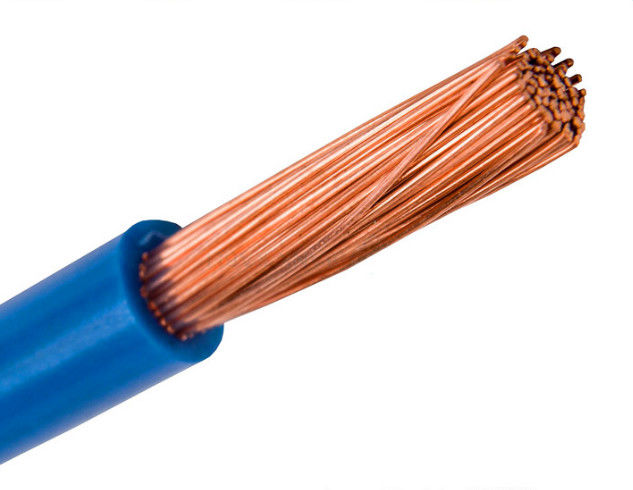

Brief construction
1) Conductor: Copper ,Stranded
2) Insulation: PVC
3) Sheath:PVC
4) Other special characteristics: Design and manufacture according to the requirements of customers.
Flexible Electrical Cable Application
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, household electrical applance,insurment and telecommunication equipment.
Technical data
- Temperature range
during installation from -5 °C to +50 °C
after installation max. +70 °C
- Minimum bending radius 6 cable diameter
- Radiation resistance
Number of cores | Normal area (mm²) |
Structure (m) |
Approx overall dia (mm) |
2 cores | 0.5 | 28/0.15 | 5.2 |
0.75 | 24/0.2 | 6.4 | |
1 | 32/0.2 | 6.6 | |
1.5 | 30/0.25 | 7.6 | |
2.5 | 49/0.25 | 9.4 | |
3 cores | 0.5 | 28/0.15 | 5.5 |
0.75 | 24/0.2 | 7.2 | |
1 | 32/0.2 | 7.2 | |
1.5 | 30/0.25 | 8.5 | |
2.5 | 49/0.25 | 10 | |
4 | 56/0.3 | 11.7 | |
6 | 84/0.3 | 13 | |
4 cores | 1 | 32/0.2 | 8 |
1.5 | 30/0.25 | 9.2 | |
2.5 | 49/0.25 | 11 | |
4 | 56/0.3 | 12.8 | |
6 | 84/0.3 | 15.4 | |
10 | 126/0.32 | 18.8 | |
5 core | 1.5 | 30/0.25 | 10.7 |
2.5 | 49/0.25 | 12.8 | |
4 | 56/0.3 | 14.5 | |
6 | 84/0.3 | 16.4 | |
10 | 126/0.32 | 21.1 | |
16 | 126/0.40 | 25.4 |
