| MOQ: | 100m |
| Price: | USD 0.87-2.66/M |
| Standard Packaging: | Wooden drum |
| Delivery Period: | 7 Days after received deposit |
| Payment Method: | L/C, T/T |
low voltage flame retardant power cable

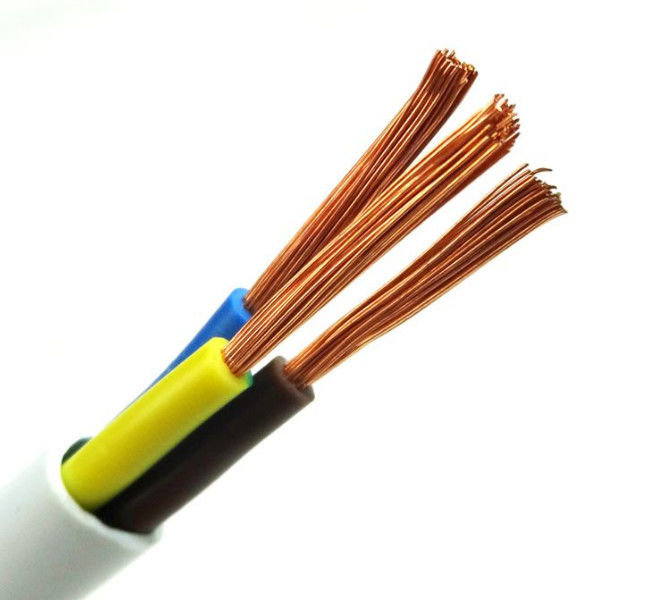

Flexible Electrical Cable
1. Wire copper core PVC insulation sheath round flexible wire is made complying with the national standard and have passed
the CCC--China Compulsory Certification, which contains the recondition of national security certificate--CCEE. Imports of Safety and Quality Licensing System--CCIB. China Certification Electromagnetic Compatibility--EMC
2. Electric wire has high quality and low price .We can also produce products according to your special requirement.
3. We promise you of the most competitive prices. If you need, we can offer you some samples for your reference.
Brief construction
1) Conductor: Copper ,Stranded
2) Insulation: PVC
3) Sheath:PVC
4) Other special characteristics: Design and manufacture according to the requirements of customers.
Flexible Electrical Cable Application
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, household electrical applance,insurment and telecommunication equipment.
Service performance
1) Long-term working temperature: not be higher than 70°C
2) When laying the cable, the ambient temperature should not lower than 0°C
3) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
| Number of cores | Normal area (mm²) |
Structure (m) |
Approx overall dia (mm) |
| 2 cores | 0.5 | 28/0.15 | 5.2 |
| 0.75 | 24/0.2 | 6.4 | |
| 1 | 32/0.2 | 6.6 | |
| 1.5 | 30/0.25 | 7.6 | |
| 2.5 | 49/0.25 | 9.4 | |
| 3 cores | 0.5 | 28/0.15 | 5.5 |
| 0.75 | 24/0.2 | 7.2 | |
| 1 | 32/0.2 | 7.2 | |
| 1.5 | 30/0.25 | 8.5 | |
| 2.5 | 49/0.25 | 10 | |
| 4 | 56/0.3 | 11.7 | |
| 6 | 84/0.3 | 13 | |
| 4 cores | 1 | 32/0.2 | 8 |
| 1.5 | 30/0.25 | 9.2 | |
| 2.5 | 49/0.25 | 11 | |
| 4 | 56/0.3 | 12.8 | |
| 6 | 84/0.3 | 15.4 | |
| 10 | 126/0.32 | 18.8 | |
| 5 core | 1.5 | 30/0.25 | 10.7 |
| 2.5 | 49/0.25 | 12.8 | |
| 4 | 56/0.3 | 14.5 | |
| 6 | 84/0.3 | 16.4 | |
| 10 | 126/0.32 | 21.1 | |
| 16 | 126/0.40 | 25.4 |
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
|
|
