low voltage flame retardant power cable
Flexible Electrical Cable Application
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.

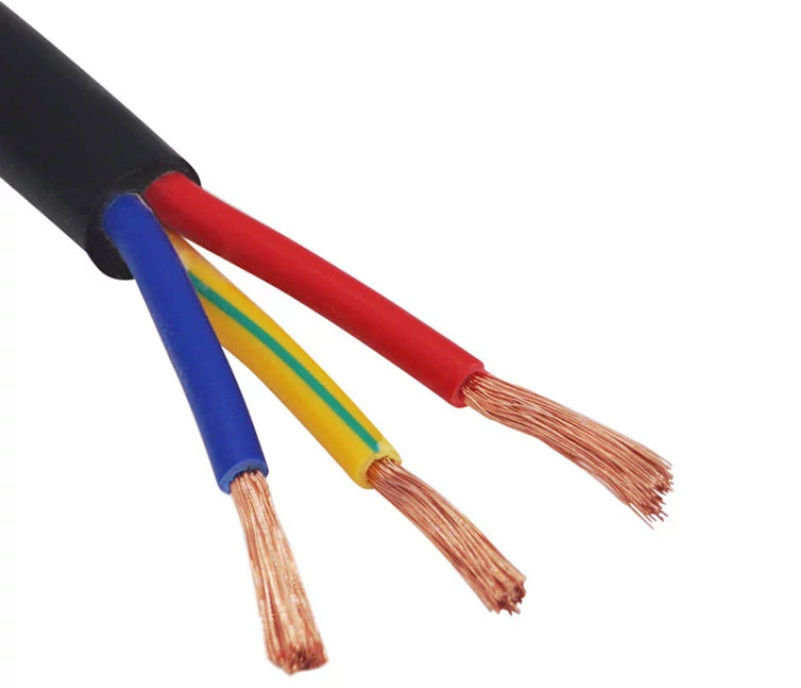

copper cable electric cable wire
Brief construction
1) Conductor: Copper ,Stranded
2) Insulation: PVC
3) Sheath:PVC
4) Other special characteristics: Design and manufacture according to the requirements of customers.
Flexible Electrical Cable Application
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, household electrical applance,insurment and telecommunication equipment.
Service performance
1) Long-term working temperature: not be higher than 70°C
2) When laying the cable, the ambient temperature should not lower than 0°C
3) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
| Number of cores | Normal area (mm²) |
Structure (m) |
Approx overall dia (mm) |
| 2 cores | 0.5 | 28/0.15 | 5.2 |
| 0.75 | 24/0.2 | 6.4 | |
| 1 | 32/0.2 | 6.6 | |
| 1.5 | 30/0.25 | 7.6 | |
| 2.5 | 49/0.25 | 9.4 | |
| 3 cores | 0.5 | 28/0.15 | 5.5 |
| 0.75 | 24/0.2 | 7.2 | |
| 1 | 32/0.2 | 7.2 | |
| 1.5 | 30/0.25 | 8.5 | |
| 2.5 | 49/0.25 | 10 | |
| 4 | 56/0.3 | 11.7 | |
| 6 | 84/0.3 | 13 | |
| 4 cores | 1 | 32/0.2 | 8 |
| 1.5 | 30/0.25 | 9.2 | |
| 2.5 | 49/0.25 | 11 | |
| 4 | 56/0.3 | 12.8 | |
| 6 | 84/0.3 | 15.4 | |
| 10 | 126/0.32 | 18.8 | |
| 5 core | 1.5 | 30/0.25 | 10.7 |
| 2.5 | 49/0.25 | 12.8 | |
| 4 | 56/0.3 | 14.5 | |
| 6 | 84/0.3 | 16.4 | |
| 10 | 126/0.32 | 21.1 | |
| 16 | 126/0.40 | 25.4 |
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
Our products are sold all over the world, you can rest assured.
