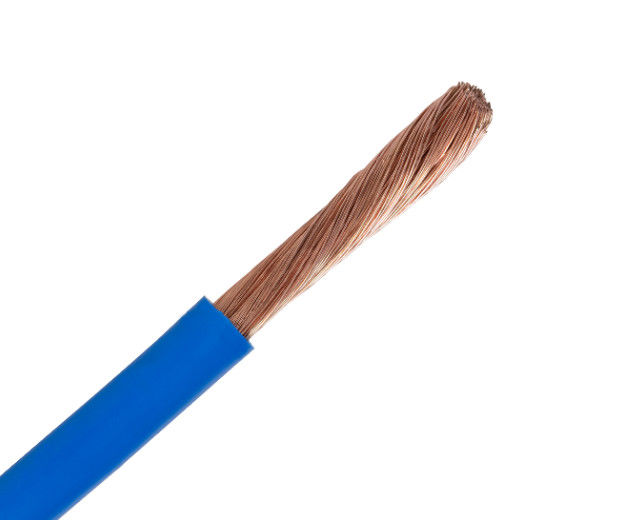

Lightning Flexible Electrical Cable OFC Conductor Low Voltage Double PVC Insulated

Lightning Flexible Electrical Cable OFC Conductor Low Voltage Double PVC Insulated

  • High Light

    electrical flex cable

    ,

    flexible power cable

  • Application
    Industrial,Household
  • Sheath Color
    Optional
  • Conductor Type
    Flexible
  • Product Name
    Flexible Electrical Cable
  • Conductor Material
    Pure Copper
  • Insulation Material
    PVC
  • Brand Name
    HOLD-ONE
  • Minimum Order Quantity
    100m
  • Price
    USD 0.87-2.66/M
  • Packaging Details
    Wooden drum
  • Delivery Time
    7 Days after received deposit
  • Payment Terms
    L/C, T/T

Lightning Flexible Electrical Cable OFC Conductor Low Voltage Double PVC Insulated

low voltage flame retardant power cable



Flexible Electrical Cable



1. 300/500V and /450/750V of flexible cable
2. Conductor Cu/CCA/AL
3. single core electrical cable
4. For fixed wiring

Conductors: pure cable /CCA

Insulation: PVC (Polyvinyl-Chloride)

Colour: any color for electricable



Brief construction



1) Conductor: Copper ,Stranded

2) Insulation: PVC

3) Sheath:PVC

4) Other special characteristics: Design and manufacture according to the requirements of customers.



Flexible Electrical Cable Application


Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, household electrical applance,insurment and telecommunication equipment.



Service performance



1) Long-term working temperature: not be higher than 70°C

2) When laying the cable, the ambient temperature should not lower than 0°C

3) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.


Number of cores Normal area
(mm²)
Structure
(m)
Approx overall dia
(mm)
2 cores 0.5 28/0.15 5.2
0.75 24/0.2 6.4
1 32/0.2 6.6
1.5 30/0.25 7.6
2.5 49/0.25 9.4
3 cores 0.5 28/0.15 5.5
0.75 24/0.2 7.2
1 32/0.2 7.2
1.5 30/0.25 8.5
2.5 49/0.25 10
4 56/0.3 11.7
6 84/0.3 13
4 cores 1 32/0.2 8
1.5 30/0.25 9.2
2.5 49/0.25 11
4 56/0.3 12.8
6 84/0.3 15.4
10 126/0.32 18.8
5 core 1.5 30/0.25 10.7
2.5 49/0.25 12.8
4 56/0.3 14.5
6 84/0.3 16.4
10 126/0.32 21.1
16 126/0.40 25.4


We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
