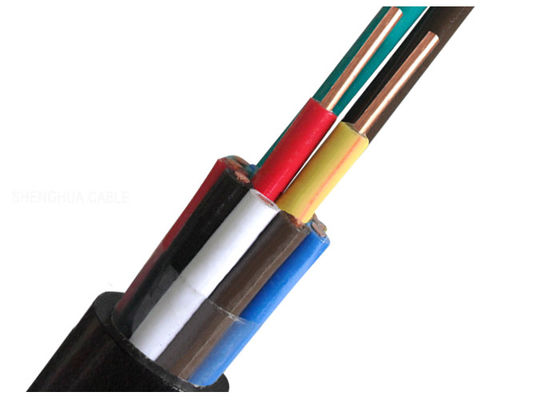

XLPE / PVC Multicore Control Cable Insulation Copper Wire Screened 450V

XLPE / PVC Multicore Control Cable Insulation Copper Wire Screened 450V

  • High Light

    multicore flexible cable

    ,

    multicore power cable

  • Screen
    Copper Wire
  • Cores
    2 To 61
  • Insulation
    XLPE
  • Conductor Type
    CLass 5
  • Screen Type
    Brain
  • Bending Radius
    12.O.D
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/CCC/TUV
  • Minimum Order Quantity
    1000m
  • Price
    USD 0.4 To 10.5 per Meter
  • Packaging Details
    Wooden Steel Drums
  • Delivery Time
    10-15 Days
  • Supply Ability
    8KM per Day

XLPE / PVC Multicore Control Cable Insulation Copper Wire Screened 450V

Copper Wire Screened Control Cables , XLPE Insulation Cable Eco Friendly



Descriptions:



Conductor: Flexible Copper Conductor

Insualtion: XLPE

Screen: Copper Wire Brain Screen

Sheath: PVC



Operating characteristics



Rated voltage: U0 / U is 450 / 750V.
Conductor wire core long-term working temperature is 90 ℃.
Recommended cable bending radius as follows:
Non-armored cable should be not less than 6 times the cable diameter;
Armor or copper tape shielded cable, shall not be less than 12 times the cable diameter;
Shielded flexible cable, not less than 6 times the cable diameter



Standard:





IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request



Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for industrial and mining enterprises, energy and transportation sectors, for rated voltage 450/750 volts control, protection PVC insulated lines and other occasions, and PVC sheathed control cable.



Cross-Sectional
Area mm2
Thickness of
Insulation mm
Diameter of
Copper Wire mm
Thickness of
Sheath mm
Overall Diameter
mm
Min resistance of
insulation at
70℃ MΩ/km
Max.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
min max
4x0.75 0.6 0.15 1.2 8.1 9.7 0.012 24.5 144
4x1 0.6 0.15 1.2 8.4 10.2 0.011 18.1 153
4x1.5 0.7 0.15 1.2 9.5 11.4 0.011 12.1 190
4x2.5 0.8 0.15 1.5 10.9 13.1 0.01 7.41 276
4x4 0.8 0.15 1.5 12.5 15.1 0.0085 4.61 367
4x6 0.8 0.15 1.5 13.6 16.5 0.007 3.08 467
4x10 1 0.2 1.7 17.1 20.7 0.0065 1.83 728
7x0.75 0.6 0.15 1.2 9.3 11.2 0.012 24.5 178
7x1.0 0.6 0.15 1.2 9.7 11.7 0.011 18.1 209
7x1.5 0.7 0.15 1.5 11 13.3 0.011 12.1 239
7x2.5 0.8 0.15 1.5 13.3 16.1 0.01 7.41 398
7x4 0.8 0.15 1.5 14.6 17.6 0.0085 4.61 528
7x6 0.8 0.2 1.5 16 19.4 0.007 3.08 717
7x10 1 0.2 1.7 20.7 25.1 0.0065 1.83 1145
10x0.75 0.6 0.15 1.5 11.3 13.7 0.012 24.5 214
10x1 0.6 0.15 1.5 12.5 15.1 0.011 18.1 300
10x1.5 0.7 0.15 1.5 14.2 17.2 0.011 12.1 367
10x2.5 0.8 0.15 1.7 16.5 20 0.01 7.41 572
10x4 0.8 0.15 1.7 18.6 22.5 0.0085 4.61 787
10x6 0.8 0.2 1.7 20.5 24.8 0.007 3.08 992





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
