Copper Conductor XLPE Insulated Control Cables WIth PVC Outer Sheath

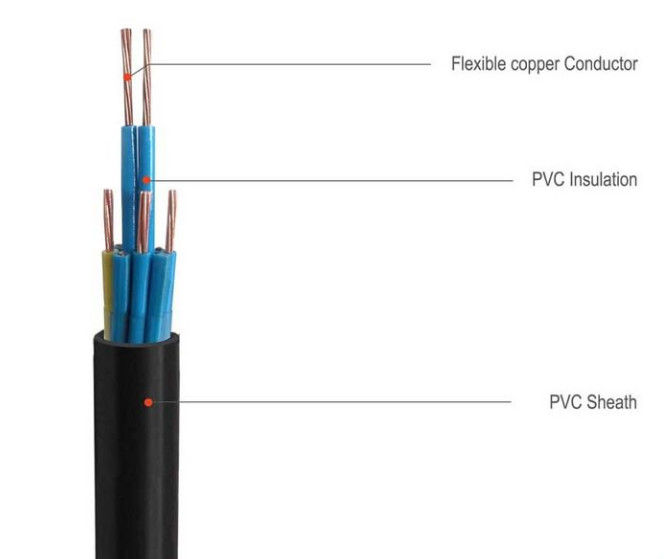

Annealed fine wires of plain electrolytic copper stranded for high flexibility. Class 5.
PVC Insulated V75
Black insulated with sequential white numbers, 1 green/yellow.
Flame retardant, oil resistant Special PVC for outstanding flexibility and durability in most hostile environments.
UV stabilised and flame retardant.
Sheath in grey or black.
PVC Insulated PVC sheathed control cable is suitable for connecting wires between electric equipment in controlling, monitoring loop and protecting circuit at rated voltage up to and including 600/1000v(A.C.).The products has not only excellent characteristics in electric and mechanical purpose but also in performances of chemical corrosion resistance , Heat-aging,environmental stress and flame-retardant,The product has simple construction and convenient to use and could be laid with no restriction of different levels.
Type: Multicore Control Cable
Rated Voltage: 450/750V
Insulation: Polyvinyl chloride (PVC)
Armour: Steel tape armoured or steel wire armoured
Outer sheath: Polyvinyl chloride (PVC)
We can according to our client's need and also provide technical data.any questions and requirements please contact us anytime,we will provide best service for multicore control cable
|Suitable for the interconnection in controlling, protecting and measuring system|
|Number of core||2~61 cores|
|Rated Voltage||450/750V conform to IEC 60227-2007 600/1000V conform to IEC 60502-2004|
AC 3000V/5Min for 450/750V, AC 3500V/5Min for 600/1000V
|Maximum conductor operating temperature||90℃ for XLPE insulation 70℃ for PVC insulation|
Up to 5 core with color Above 5 core with number
|Color of sheath||Black and customer designated|
IEC 60227-2007, IEC 60502-2004
|Conductor type||IEC 60228-2004 class 1, class 2 and class5 Nominal Cross-section area:0.5~10mm2 We can produce according to your need and provide technical data|
|Packing||Cable can be supplied in any length required.|
IEC 60227-2007 IEC 60502-2004
