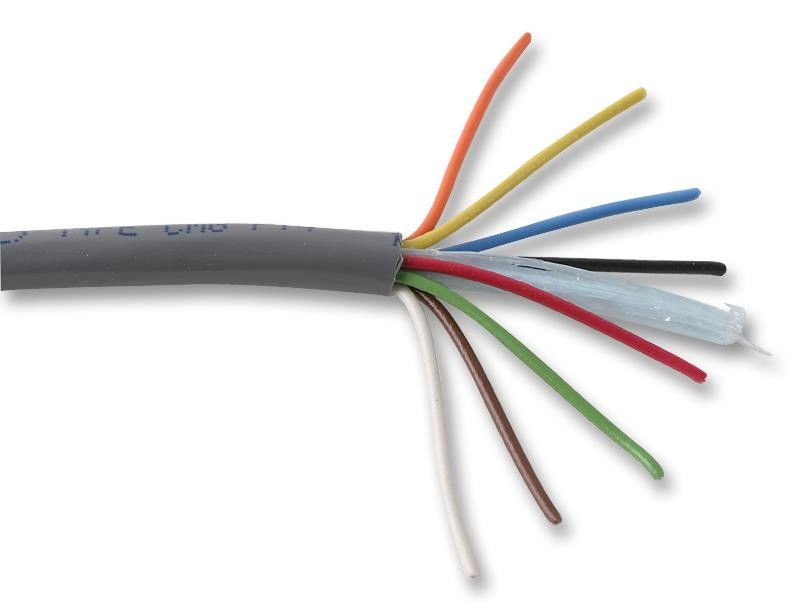

Al - Foil Screen Tinned Copper Wire , PVC Sheathed Cable Multi Cores

Al - Foil Screen Tinned Copper Wire , PVC Sheathed Cable Multi Cores

Products - Multicore Control Cable
  • High Light

    multicore flexible cable

    ,

    multi core electrical cable

  • Core
    2 To 61
  • Screen
    Al-foil And Tinned Copper Wire Brain Double Screen
  • Color
    Black
  • Crosssection
    2.5mm2 To 10mm2
  • Conductor Type
    Class 1 Or Class 2
  • Drain Wire
    Copper Wire Or Tinned Copper Wire
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/CCC/TUV
  • Minimum Order Quantity
    1000m
  • Price
    USD 0.4 To 10.5 per Meter
  • Packaging Details
    Wooden Steel Drums
  • Delivery Time
    10-15 Days
  • Supply Ability
    8KM per Day

Al - Foil Screen Tinned Copper Wire , PVC Sheathed Cable Multi Cores

  • Al - Foil Screen Tinned Copper Wire , PVC Sheathed Cable Multi Cores
Get Price Contact Now

Al-Foil Screen Tinned Copper Wire Brain Screen PVC Sheathed Cable With Multi Cores



Product feature

---  Flame-retardant according IEC 60332-1-2



--- Good chemical resistance

--- Oil-resistant according to DIN EN 50290-2-22





Descriptions:



Conductor: Flexible Copper Conductor

Insualtion: PVC

Screen: Al-foil Screen with Tinned Drain Wire and Tinned Copper Wire Brain Screen.

Sheath: PVC



Application:



For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.



PVC Insulated PVC sheathed control cable is suitable for connecting wires between electric equipment in controlling, monitoring loop and protecting circuit at rated voltage up to and including 600/1000v(A.C.).The products has not only excellent characteristics in electric and mechanical purpose but also in performances of chemical corrosion resistance , Heat-aging,environmental stress and flame-retardant,The product has simple construction and convenient to use and could be laid with no restriction of different levels.



Type: Multicore Control Cable


Rated Voltage: 450/750V
Conductor: Copper
Insulation: Polyvinyl chloride (PVC)
Armour: Steel tape armoured or steel wire armoured
Outer sheath: Polyvinyl chloride (PVC)



We can according to our client's need and also provide technical data.any questions and requirements please contact us anytime,we will provide best service for multicore control cable



Application
 Suitable for the interconnection in controlling, protecting and measuring system
Number of core 2~61 cores
Rated Voltage 450/750V conform to IEC 60227-2007 600/1000V conform to IEC 60502-2004
Test Voltage
AC 3000V/5Min for 450/750V, AC 3500V/5Min for 600/1000V
Maximum conductor operating temperature 90℃ for XLPE insulation 70℃ for PVC insulation
Core’s recognition
Up to 5 core with color Above 5 core with number
Color of sheath Black and customer designated
Manufactured Standards
IEC 60227-2007, IEC 60502-2004
Conductor type IEC 60228-2004 class 1, class 2 and class5 Nominal Cross-section area:0.5~10mm2 We can produce according to your need and provide technical data
Packing Cable can be supplied in any length required.
Standard
IEC 60227-2007 IEC 60502-2004





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.


We can according to our client's need and also provide technical data.any questions and requirements please contact us anytime,we will provide best service for multicore control cable
