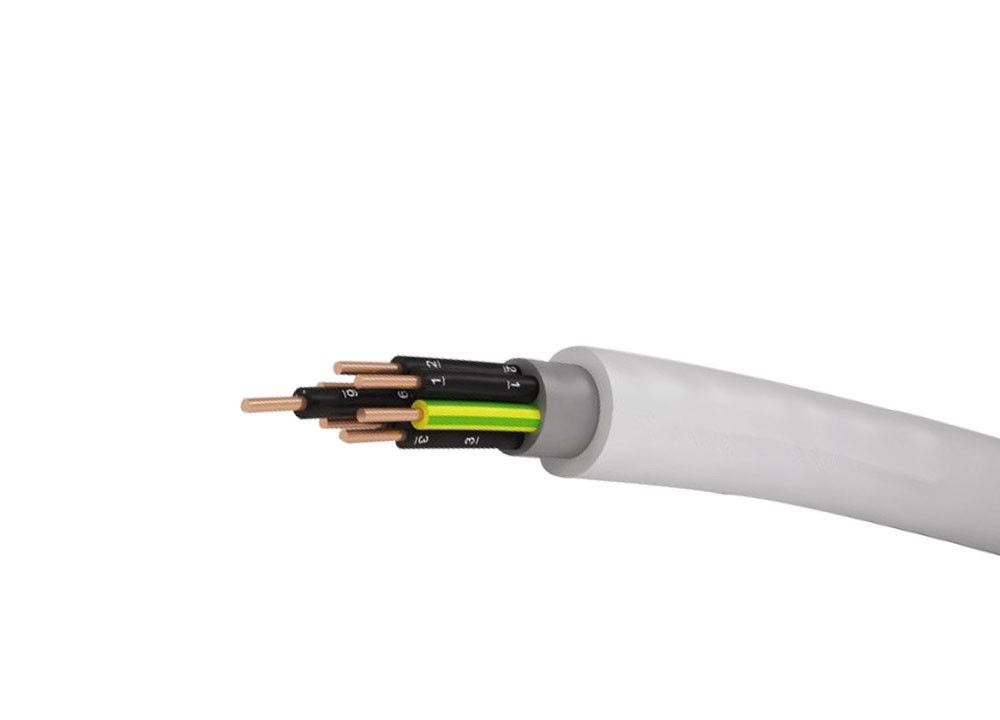

PVC Sheath XLPE  Multicore Control Cable WIth CE / KEMA Certificate

PVC Sheath XLPE Multicore Control Cable WIth CE / KEMA Certificate

  • High Light

    multicore power cable

    ,

    multi core electrical cable

  • Conductor
    Copper
  • Insulation
    XLPE
  • Sheath
    PVC
  • Color
    Black
  • Place
    ShangHai
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/CCC/TUV
  • Minimum Order Quantity
    1000m
  • Price
    USD 0.4 To 10.5 per Meter
  • Packaging Details
    100/200 Meters per Rolls or Wooden Steel Drums
  • Delivery Time
    10-15 Days
  • Supply Ability
    8KM per Day

PVC Sheath XLPE Multicore Control Cable WIth CE / KEMA Certificate

PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate



Its special structure so that it can be used in the computer system, office equipment, and other signal and the control equipment of the cable.It also ideal for its excellent mechanical properties in a damp environment is known outside of high frequency wave interference can be galvanized copper net block.It also has a very high resistance to tear grinding characteristics, moreover, it also has the rich and the characteristics of the chemical etching can effectively prevent acid, alkali, uv, and biological oxidation and microbial corrosion in sea water and waste water or alcohol fuels such as stable jobs and kerosene liquid environment.



Copper Conductor Control Cable



1. Conductor material:Bare copper
2. Insulation material:PVC
3. Conductor type:Stranded
4. Structure:Multi-core winch into layers
5. Wrapping method:Use the pile as a whole (optional)
6. Shielding material:Tin-coated copper mesh
7. Sheath materials:PUR
8. Minimum bending radius:
winding time:15 x cable diameter
fixed time:6 x cable diameter
9. Rated temperature: static :-30 C to + 80 C
10. Working voltage(Max):250V(non-electric or high-voltage current transmission purpose)



We can according to our client's need and also provide technical data.any questions and requirements please contact us anytime,we will provide best service for multicore control cable



Application
Suitable for the interconnection in controlling, protecting and measuring system
Number of core 2~61 cores
Rated Voltage 450/750V conform to IEC 60227-2007 600/1000V conform to IEC 60502-2004
Test Voltage
AC 3000V/5Min for 450/750V, AC 3500V/5Min for 600/1000V
Maximum conductor operating temperature 90℃ for XLPE insulation 70℃ for PVC insulation
Core’s recognition
Up to 5 core with color Above 5 core with number
Color of sheath Black and customer designated
Manufactured Standards
IEC 60227-2007, IEC 60502-2004
Conductor type IEC 60228-2004 class 1, class 2 and class5 Nominal Cross-section area:0.5~10mm2 We can produce according to your need and provide technical data
Packing Cable can be supplied in any length required.
Standard
IEC 60227-2007 IEC 60502-2004





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
