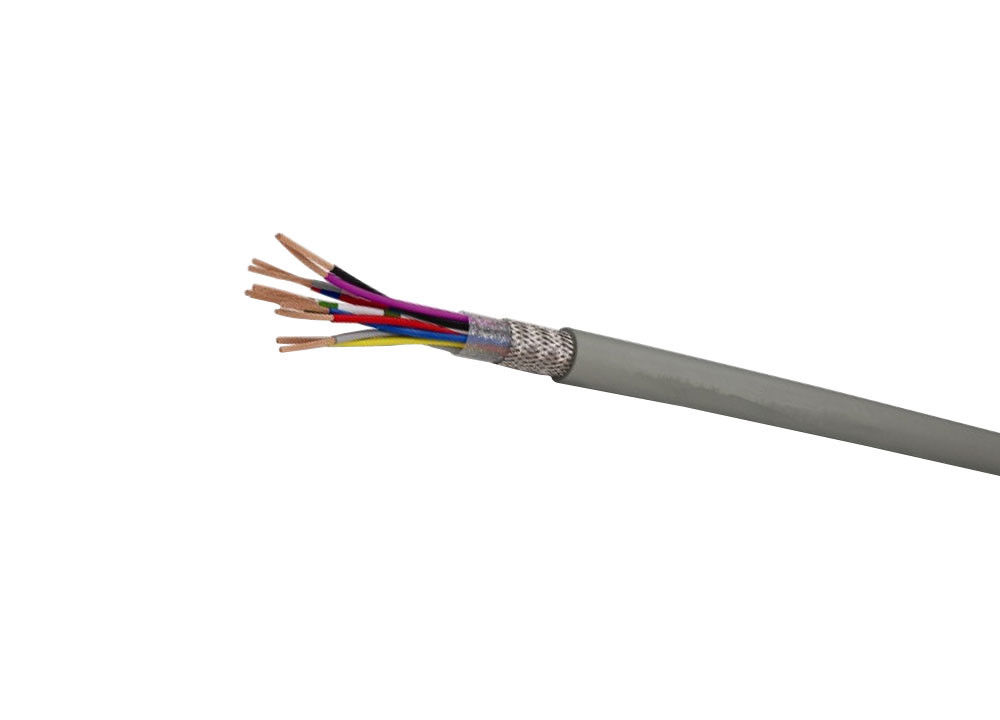

Copper Conductor Custom Control Cables Flame Retardant Halogen Free
This product is suitable for connection of all kinds of electric equipment and instrument in controlling , monitoring and protecting circuits with rated AC . voltage up to 450/750V or below Flame-retardant control cables , fire resistance control cables , low-smoke low halogen or low smoke halogen-free flame retardent control cables and flame-separated flame-retardant control cables are suitable for flame-retadant , fire resistance , low-smoke innocent system.
Type: Multicore Control Cable
Rated Voltage: 450/750V
Conductor: Copper
Insulation: Polyvinyl chloride (PVC)
Armour: Steel tape armoured or steel wire armoured
Outer sheath: Polyvinyl chloride (PVC)
We can according to our client's need and also provide technical data.any questions and requirements please contact us anytime,we will provide best service for multicore control cable
|
Application
|
Suitable for the interconnection in controlling, protecting and measuring system |
| Number of core | 2~61 cores |
| Rated Voltage | 450/750V conform to IEC 60227-2007 600/1000V conform to IEC 60502-2004 |
|
Test Voltage
|
AC 3000V/5Min for 450/750V, AC 3500V/5Min for 600/1000V
|
| Maximum conductor operating temperature | 90℃ for XLPE insulation 70℃ for PVC insulation |
| Core’s recognition |
Up to 5 core with color Above 5 core with number
|
| Color of sheath | Black and customer designated |
| Manufactured Standards |
IEC 60227-2007, IEC 60502-2004
|
| Conductor type | IEC 60228-2004 class 1, class 2 and class5 Nominal Cross-section area:0.5~10mm2 We can produce according to your need and provide technical data |
| Packing | Cable can be supplied in any length required. |
| Standard |
IEC 60227-2007 IEC 60502-2004
|
PVC Insulated PVC sheathed control cable is suitable for connecting wires between electric equipment in controlling, monitoring loop and protecting circuit at rated voltage up to and including 600/1000v(A.C.).The products has not only excellent characteristics in electric and mechanical purpose but also in performances of chemical corrosion resistance , Heat-aging,environmental stress and flame-retardant,The product has simple construction and convenient to use and could be laid with no restriction of different levels.
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
Our products are sold all over the world, you can rest assured.
