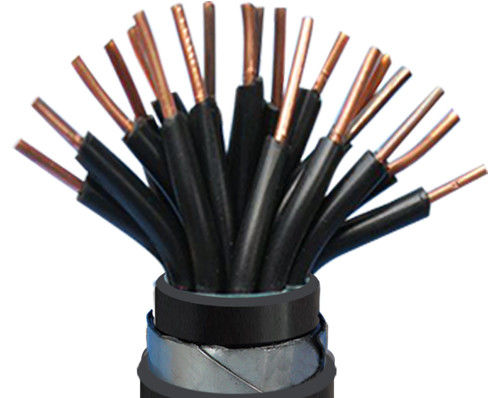

PVC Insulated Multicore Control Cable Steel Wire WIth Flame Retardant Sheath

PVC Insulated Multicore Control Cable Steel Wire WIth Flame Retardant Sheath

  • High Light

    multicore flexible cable

    ,

    multi core electrical cable

  • Conductor
    Solid Copper Conductor
  • Insulation
    PVC
  • Sheath
    Flame Retardant Sheath
  • Color
    Black
  • Core
    5-61
  • Size
    0.75-4
  • Armored
    Steel Wire
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/CCC/TUV
  • Minimum Order Quantity
    1000m
  • Price
    USD 0.4 To 10.5 per Meter
  • Packaging Details
    100/200 Meters per Rolls or Wooden Steel Drums
  • Delivery Time
    10-15 Days
  • Supply Ability
    8KM per Day

PVC Insulated Multicore Control Cable Steel Wire WIth Flame Retardant Sheath

PVC insulated PVC sheathed steel wire armored control cable WIth Flame retardant Sheath

Performance differences



Power cables are used in power system main lines to transmit and distribute high-power electric power, and control cables directly transmit electric energy from power distribution points of power system to power connecting lines of various electric equipment and appliances. The rated voltage of power cables is generally 0.6 / 1kV and above, the control cable is mainly 450 / 750V. The same specifications of the power cables and control cables in the production, the power cable insulation and sheath thickness than the control cable.



(A) The control cables belong to the electrical equipment cables, and the power cables are two of the five major categories of cables.



(B) the standard control cable is 9330, the standard power cable is GB12706.



(C) the control cable insulation core colors are generally black printed white, there are low-voltage power cables are generally color separation.



(D) Control cable cross-section generally do not exceed 10 square feet, the main power cable power transmission, are generally large cross-section.





1. Implementation standards



GB/T 9330.1-2008 GB/T9330.2-2008 GB/T 19666-2005



2. Use



This product is suitable for AC rated voltage 450 / 750V and below the control, monitoring circuits and protection lines and other occasions



3. Use features​



3.1 The conductor of the cable is the maximum operating temperature of 70.



3.2 Ambient temperature is not less than 0℃



3.3 Cable flame retardant properties meet the requirements of the corresponding indicators in the

GB/T19666-2005 standard.



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
