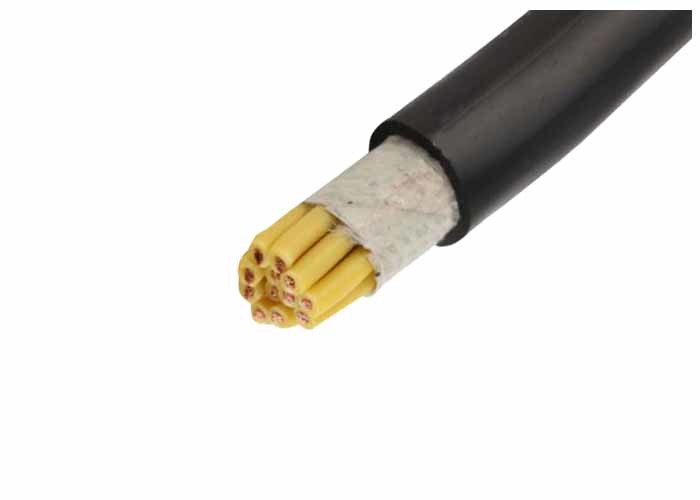

Multi Cores Al-foil Screen PVC Sheathed Control Cable Tinned Copper Wire Brain Screened Cable
Construction
Conductor: Solid or Stranded or Flexible Copper Conductor
Insualtion: PVC
Screen: Al-foil Screen with Tinned Drain Wire or Tinned Copper Wire Brain Screen.
Sheath: PVC
Application
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750V.
Why Choose Screen Control Cable
Reduce the impact of external current transmission, Keep safe and Correctly.
Standard
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Certificates
CE, RoHS, CCC, KEMA and more others at request
Operating characteristics
Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 70°C
Upon short circuit (Max. Duration time 5s) the Max.
temperature of conductor not higher than:
PVC insulated: 160°C;
Ambient temperature of installation not less than 0°C.
Brain density:≥80%
Cross-Sectional Area mm2 |
Thickness of Insulation mm |
Thickness of mm |
Thickness of Sheath mm |
Overall Diameter mm |
Min resistance of insulation at 70℃ MΩ/km |
Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|
min | max | |||||||
4x2.5 | 0.8 | 0.3 | 1.5 | 13.4 | 16.1 | 0.001 | 7.98 | 450 |
4x4 | 0.8 | 0.3 | 1.5 | 14.4 | 17.4 | 0.0085 | 4.95 | 505 |
4x6 | 0.8 | 0.3 | 1.5 | 15.6 | 18.8 | 0.007 | 3.3 | 619 |
4x10 | 1 | 0.3 | 1.7 | 19.4 | 23.5 | 0.0065 | 1.91 | 947 |
5x2.5 | 0.8 | 0.3 | 1.5 | 14.3 | 17.2 | 0.001 | 7.98 | 506 |
5x4 | 0.8 | 0.3 | 1.5 | 15.4 | 18.6 | 0.0085 | 4.95 | 586 |
5x6 | 0.8 | 0.3 | 1.7 | 16.7 | 20.2 | 0.007 | 3.3 | 737 |
5x10 | 1 | 0.3 | 1.7 | 21 | 25.4 | 0.0065 | 1.91 | 1125 |
7x0.75 | 0.6 | 0.3 | 1.5 | 11.8 | 14.2 | 0.012 | 26 | 317 |
7x1.0 | 0.6 | 0.3 | 1.5 | 12.2 | 14.7 | 0.011 | 19.5 | 425 |
7x2.5 | 0.7 | 0.3 | 1.5 | 13.5 | 16.3 | 0.01 | 7.98 | 554 |
7x4 | 0.8 | 0.3 | 1.5 | 15.2 | 18.4 | 0.0085 | 4.95 | 701 |
7x6 | 0.8 | 0.3 | 1.7 | 18 | 21.7 | 0.007 | 3.30 | 900 |
7x10 | 1 | 0.3 | 1.7 | 22.7 | 27.4 | 0.0065 | 1.91 | 1397 |
10x0.75 | 0.6 | 0.3 | 1.5 | 13.8 | 16.7 | 0.012 | 26 | 449 |
10x1 | 0.6 | 0.3 | 1.5 | 14.4 | 17.4 | 0.011 | 19.5 | 558 |
10x1.5 | 0.7 | 0.3 | 1.5 | 16.1 | 19.5 | 0.011 | 13.3 | 753 |
10x2.5 | 0.8 | 0.3 | 1.7 | 18.8 | 22.7 | 0.01 | 7.98 | 956 |
10x4 | 0.8 | 0.3 | 1.7 | 20.5 | 24.8 | 0.0085 | 4.95 | 1203 |
10x6 | 0.8 | 0.3 | 1.7 | 22.5 | 27.1 | 0.007 | 3.3 | 1534 |
