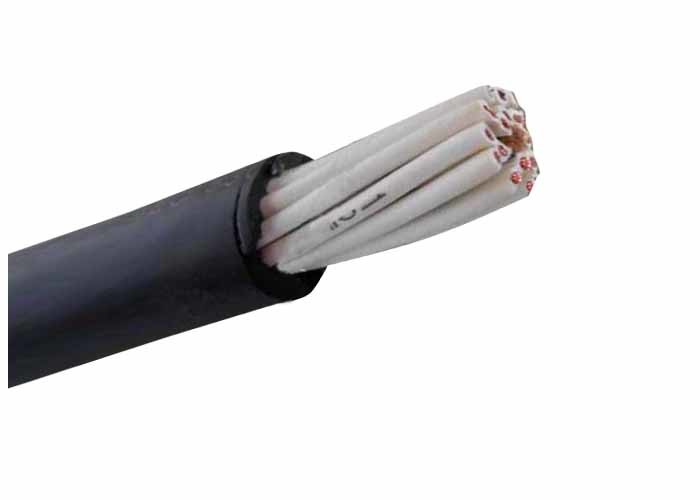

Unarmoured Flexible Control Cable , Copper Control Cable 450/750V 2 - 61 Cores

Unarmoured Flexible Control Cable , Copper Control Cable 450/750V 2 - 61 Cores

Products - Multicore Control Cable
  • High Light

    multicore flexible cable

    ,

    multi core electrical cable

  • Insualtion
    PVC
  • Sheath
    PVC
  • Material
    Copper
  • Conductor Type
    Class2
  • Cores No.
    2 To 61
  • Size
    0.75mm2 To 10mm2
  • Conductor Shape
    Round
  • Color
    Black Or Grey
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/CCC
  • Minimum Order Quantity
    2000m
  • Price
    0.3-29.8$/M
  • Packaging Details
    Wooden Steel Drums
  • Delivery Time
    10-15 Days
  • Supply Ability
    50KM per Week

Unarmoured Flexible Control Cable , Copper Control Cable 450/750V 2 - 61 Cores

  • Unarmoured Flexible Control Cable , Copper Control Cable 450/750V 2 - 61 Cores
  • Unarmoured Flexible Control Cable , Copper Control Cable 450/750V 2 - 61 Cores
  • Unarmoured Flexible Control Cable , Copper Control Cable 450/750V 2 - 61 Cores
Get Price Contact Now

2 - 61 Cores Unarmoured Control Cable PVC Insulation and Sheathed Copper Control Cable 450/750V





Application



Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.




Construction



Conductor: Stranded Copper Conductor, class 2

Insualtion: PVC

Sheath: PVC





Standard



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D





Certificate



CE, RoHS, CCC, KEMA and more others at request





Specifications


Cross-Sectional
Area mm2		 Thickness of
Insulation mm		 Thickness of
Steel Tape mm		 Thickness of
Sheath mm		 Overall Diameter
mm		 Min resistance of
insulation at
70℃ MΩ/km		 Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
4x2.5 0.8 2x0.2(0.3) 1.5 13.4 16.1 0.001 7.41 450
4x4 0.8 2x0.2(0.3) 1.5 14.4 17.4 0.0085 4.61 505
4x6 0.8 2x0.2(0.3) 1.5 15.6 18.8 0.007 3.08 619
4x10 1 2x0.2(0.3) 1.7 19.4 23.5 0.0065 1.83 947
5x2.5 0.8 2x0.2(0.3) 1.5 14.3 17.2 0.001 7.41 506
5x4 0.8 2x0.2(0.3) 1.5 15.4 18.6 0.0085 4.61 586
5x6 0.8 2x0.2(0.3) 1.7 16.7 20.2 0.007 3.08 737
5x10 1 2x0.2(0.3) 1.7 21 25.4 0.0065 1.83 1125
7x0.75 0.6 2x0.2(0.3) 1.5 11.8 14.2 0.012 24.5 317
7x1.0 0.6 2x0.2(0.3) 1.5 12.2 14.7 0.011 18.1 425
7x2.5 0.7 2x0.2(0.3) 1.5 13.5 16.3 0.01 7.41 554
7x4 0.8 2x0.2(0.3) 1.5 15.2 18.4 0.0085 4.61 701
7x6 0.8 2x0.2(0.3) 1.7 18 21.7 0.007 3.08 900
7x10 1 2x0.2(0.3) 1.7 22.7 27.4 0.0065 1.83 1397
10x0.75 0.6 2x0.2(0.3) 1.5 13.8 16.7 0.012 24.5 449
10x1 0.6 2x0.2(0.3) 1.5 14.4 17.4 0.011 18.1 558
10x1.5 0.7 2x0.2(0.3) 1.5 16.1 19.5 0.011 12.1 753
10x2.5 0.8 2x0.2(0.3) 1.7 18.8 22.7 0.01 7.41 956
10x4 0.8 2x0.2(0.3) 1.7 20.5 24.8 0.0085 4.61 1203
10x6 0.8 2x0.2(0.3) 1.7 22.5 27.1 0.007 3.08 1534






Operating characteristics



Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.
