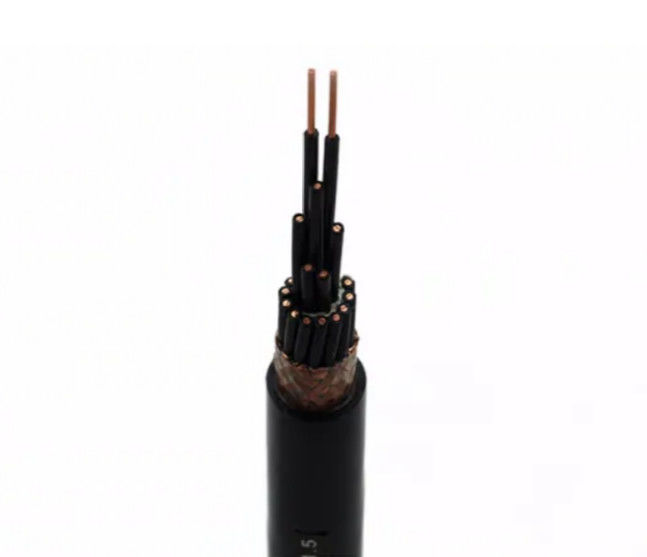

Polyolefin Multicore Control Cable Low Smoke Zero Halogen XLPE Sheathed
Polyolefin Multicore Control Cable Low Smoke Zero Halogen XLPE Sheathed

Polyolefin Multicore Control Cable Low Smoke Zero Halogen XLPE Sheathed

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: CE/KEMA/CCC/TUV
Payment & Shipping Terms:
Minimum Order Quantity: 500m
Price: USD 0.4 To 100 per Meter
Packaging Details: 100/200 Meters per Rolls or Wooden Steel Drums
Delivery Time: 10-15 Days
Supply Ability: 8KM per Day
Contact Now
  • Detail Information
  • Product Description

Detail Information
Insualtion: XLPE Sheath: LSOH Sheath
Material: Copper Size: 0.75mm2 To 10mm2
Conductor Shape: Round Color: Black Or Grey
High Light:

multicore flexible cable

,

multi core electrical cable

Product Description

XLPE Insulated Flexible Control Cables Black LSOH Sheathed WDZB-KYJY

Construction:

Conductor: Solid or Stranded Copper Conductor
Insualtion: XLPE
Sheath: Low Smoke Halogen-free Sheath

Standard:

IEC Standard: IEC 60227, IEC60228,IEC60754.IEC60332
China Standard: GB9330.GB12666
Other standards such as BS,DIN and ICEA upon request




Technical data

Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (90℃), emergency (100℃ or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D



Certificates

CE, RoHS, CCC, KEMA and more others at request

Application:

Suitable for being laid indoors, in cable trench, pipelines or other specific occasions.


Specifications:


Cross-Sectional
Area mm2		Thickness of
Insulation		Thickness of
Sheath		Overall DiameterMin resistance of
insulation at
70℃ MΩ/km		Max.D.C resistance
of at 20℃
MΩ/km		Approx Weight
(kg/km)
minmax
2x0.750.61.26.78.10.01224.559
2x10.61.278.50.01118.167
2x1.50.61.27.99.50.01112.186
2x2.50.71.2910.90.017.41120
2x40.71.29.911.90.00854.61167
2x60.71.210.813.10.0073.08220
3x0.750.61.27.18.50.01224.571
3x10.61.27.48.90.01118.182
3x1.50.61.28.3100.01112.1108
3x2.50.71.29.511.50.017.41154
3x40.71.210.512.40.00854.61210
3x60.71.211.513.90.0073.08310
