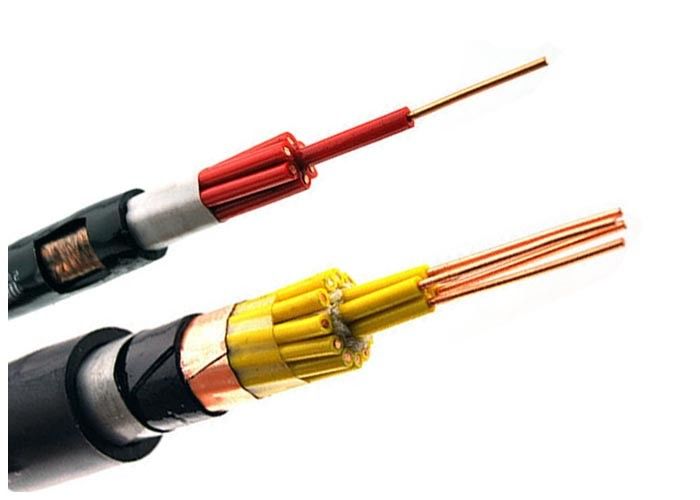

PVC Armoured Control Cable , Multicore Shielded Cable 450 / 750V Below

PVC Armoured Control Cable , Multicore Shielded Cable 450 / 750V Below

Products - Multicore Control Cable
  • High Light

    multicore power cable

    ,

    multi core electrical cable

  • Conductor
    Copper
  • Insulation
    XLPE
  • Jacket
    PVC
  • Armor
    Steel Tape Armor
  • Application
    Construction
  • Inner Cover
    PVC
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE,CCC,KEMA GOST
  • Minimum Order Quantity
    500
  • Price
    USD0.8-100/m
  • Packaging Details
    rolls or wooden drums
  • Delivery Time
    30 working days
  • Supply Ability
    300000/month

PVC Armoured Control Cable , Multicore Shielded Cable 450 / 750V Below

  • PVC Armoured Control Cable , Multicore Shielded Cable 450 / 750V Below
Get Price Contact Now
Packaging Details

steel wooden drum



Delivery Time

15-20days since advance payment

Product name: Crosslinked polyethylene PVC sheathed control cable.

Conductsor: Stranded copper conductor

Insulation: XLPE

Inner Cover: PVC

Armor:Steel Tape Armor

Sheath: PVC

Note: Insulation color as per standards or at request



Applications

Be suitable for measuring controlling or regulation for assmebly and production line with rated voltage 450/750 V.

For laying indoors, in ducts and in trenches, for fixed installation.



Standsrd:

International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008 Other standards such as BS,DIN and ICEA upon request



Certificates

CE, RoHS, CCC, KEMA and more others at request

Cross-Sectional
Area mm2		 Thickness of
Insulation		 Thickness of
Sheath		 Max.D.C resistance
of at 20℃
MΩ/km
2X0.75 0.6 1.2 24.5
3x0.75 0.6 1.2 24.5
4x0.75 0.6 1.2 24.5
5x0.75 0.6 1.2 24.5
7x0.75 0.6 1.2 24.5
8x0.75 0.6 1.2 24.5
10x0.75 0.6 1.2 24.5
12x0.75 0.6 1.2 24.5
14x0.75 0.6 1.5 24.5
16x0.5 0.6 1.5 24.5
19x0.75 0.6 1.5 24.5
24x0.75 0.6 1.5 24.5
27x0.75 0.6 1.5 24.5
30x0.75 0.6 1.5 24.5






We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.
