Shielded Multicore Control Cable XLPE Insulated Flame Retardant 1.0-4mm2 Section Area

Shielded Multicore Control Cable XLPE Insulated Flame Retardant 1.0-4mm2 Section Area

Products - Multicore Control Cable
  • High Light

    multicore power cable

    ,

    multi core electrical cable

  • Standard
    VDE0250,BS6004 GB/t93301-1
  • Conductor
    Class1 And Class 2
  • Insulation
    PVC
  • Color
    Black, Grey
  • Section Area
    1.0-4mm2
  • Core
    2-61
  • Shield Coverage
    85%
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE,CCC,KEMA GOST
  • Minimum Order Quantity
    500
  • Price
    USD0.8-35/m
  • Packaging Details
    rolls or wooden drums
  • Delivery Time
    15 working days
  • Supply Ability
    200000/month

Shielded Multicore Control Cable XLPE Insulated Flame Retardant 1.0-4mm2 Section Area

  • Shielded Multicore Control Cable XLPE Insulated Flame Retardant 1.0-4mm2 Section Area
Get Price Contact Now

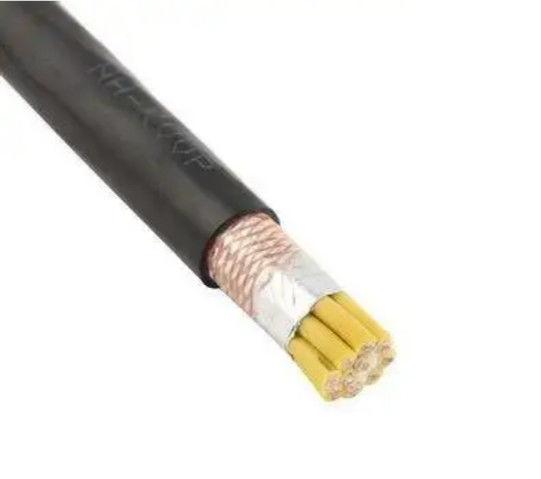

XLPE insulated Flame Retardant PVC sheath copper wire shielded Control Cable



Construction:



Conductor: Class 1&2 Copper Conductor

Insualtion: XLPE

Sheath: PVC

Copper wire braided

PVC sheath

PVC Insulated PVC sheathed control cable is suitable for connecting wires between electric equipment in controlling, monitoring loop and protecting circuit at rated voltage up to and including 600/1000v(A.C.).The products has not only excellent characteristics in electric and mechanical purpose but also in performances of chemical corrosion resistance , Heat-aging,environmental stress and flame-retardant,The product has simple construction and convenient to use and could be laid with no restriction of different levels.



Type: Multicore Control Cable


Rated Voltage: 450/750V
Conductor: Copper
Insulation: Polyvinyl chloride (PVC)
Armour: Steel tape armoured or steel wire armoured
Outer sheath: Polyvinyl chloride (PVC)



We can according to our client's need and also provide technical data.any questions and requirements please contact us anytime,we will provide best service for multicore control cable



Application
 Suitable for the interconnection in controlling, protecting and measuring system
Number of core 2~61 cores
Rated Voltage 450/750V conform to IEC 60227-2007 600/1000V conform to IEC 60502-2004
Test Voltage
AC 3000V/5Min for 450/750V, AC 3500V/5Min for 600/1000V
Maximum conductor operating temperature 90℃ for XLPE insulation 70℃ for PVC insulation
Core’s recognition
Up to 5 core with color Above 5 core with number
Color of sheath Black and customer designated
Manufactured Standards
IEC 60227-2007, IEC 60502-2004
Conductor type IEC 60228-2004 class 1, class 2 and class5 Nominal Cross-section area:0.5~10mm2 We can produce according to your need and provide technical data
Packing Cable can be supplied in any length required.
Standard
IEC 60227-2007 IEC 60502-2004





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
