Al-Foil Screen PVC Sheathed Cable , Multi Core Electrical Cable With Tinned Drain Wire
  • name
  • name
  • name
  • name

Al-Foil Screen PVC Sheathed Cable , Multi Core Electrical Cable With Tinned Drain Wire

MOQ: 1000m
Price: USD 0.4 To 10.5 per Meter
Standard Packaging: Wooden Steel Drums
Delivery Period: 10-15 Days
Supply Capacity: 8KM per Day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
CE/KEMA/CCC/TUV
Core:
2 To 61
Screen:
Al-foil
Color:
Black
Crosssection:
2.5mm2 To 10mm2
Conductor Type:
Class 1 Or Class 2
Drain Wire:
Copper Wire Or Tinned Copper Wire
Highlight:

multicore flexible cable

,

multi core electrical cable

Product Description

Al-Foil Screen PVC Sheathed Cable , Multi Core Electrical Cable With Tinned Drain Wire

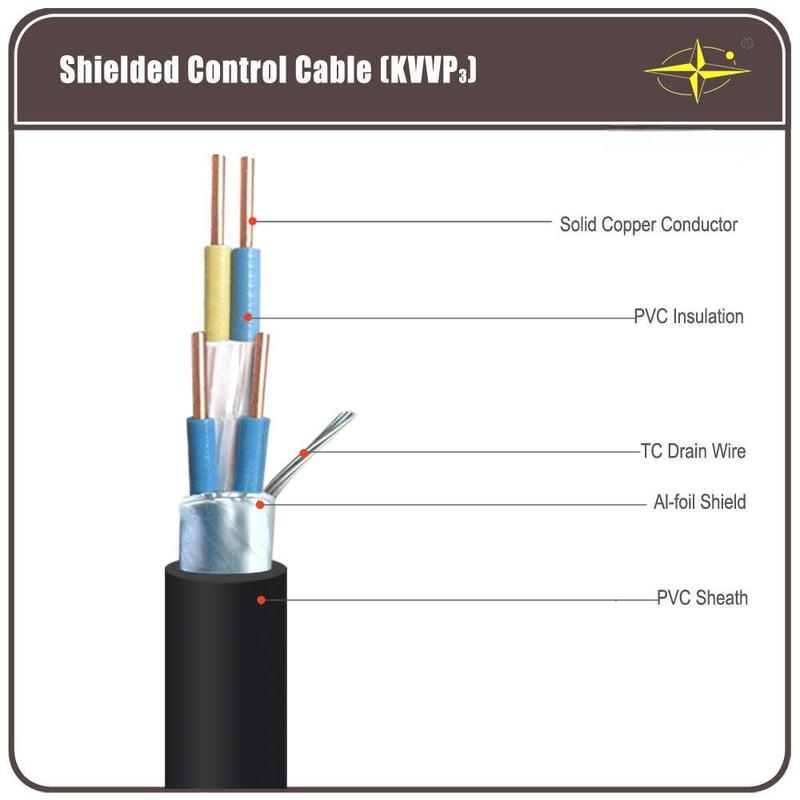

Descriptions:



Conductor: Flexible Copper Conductor

Insualtion: PVC

Screen: Al-foil Screen with Tinned Drain Wire

Sheath: PVC



Operating characteristics



Rated voltages U0/U: 450/750V

Permissible Max. continuous operating temperature of conductor:

PVC insulated: 70°C

Upon short circuit (Max. Duration time 5s) the Max.

temperature of conductor not higher than:

PVC insulated: 160°C;

Ambient temperature of installation not less than 0°C.





Application:



For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request



Certificates



CE, RoHS, CCC, KEMA and more others at request



Why Choose Screen Control Cable



Reduce the impact of external current transmission, Keep safe and Correctly.



Why Choose SHAN CABLE



Here's Shanghai Shenghua Cable Is Committed to Offer for Every Customer:

High quality cable product with competitive price;

OEM cable product

Custom design per specific cable requirements and budgets;

Fast and on-time delivery of cable;

Flexible business deal;

Chief cable engineer with over 40 years' experience;

Harmonious colleague and customer relationship;

All cable products 100% Inspection;

Comprehensive after-sale service.



Cross-Sectional
Area mm2		 Thickness of
Insulation mm

Thickness of
Al-foil

mm

 Thickness of
Sheath mm		 Overall Diameter
mm		 Min resistance of
insulation at
70℃ MΩ/km		 Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
4x2.5 0.8 0.3 1.5 13.4 16.1 0.001 7.98 450
4x4 0.8 0.3 1.5 14.4 17.4 0.0085 4.95 505
4x6 0.8 0.3 1.5 15.6 18.8 0.007 3.3 619
4x10 1 0.3 1.7 19.4 23.5 0.0065 1.91 947
5x2.5 0.8 0.3 1.5 14.3 17.2 0.001 7.98 506
5x4 0.8 0.3 1.5 15.4 18.6 0.0085 4.95 586
5x6 0.8 0.3 1.7 16.7 20.2 0.007 3.3 737
5x10 1 0.3 1.7 21 25.4 0.0065 1.91 1125
7x0.75 0.6 0.3 1.5 11.8 14.2 0.012 26 317
7x1.0 0.6 0.3 1.5 12.2 14.7 0.011 19.5 425
7x2.5 0.7 0.3 1.5 13.5 16.3 0.01 7.98 554
7x4 0.8 0.3 1.5 15.2 18.4 0.0085 4.95 701
7x6 0.8 0.3 1.7 18 21.7 0.007 3.30 900
7x10 1 0.3 1.7 22.7 27.4 0.0065 1.91 1397
10x0.75 0.6 0.3 1.5 13.8 16.7 0.012 26 449
10x1 0.6 0.3 1.5 14.4 17.4 0.011 19.5 558
10x1.5 0.7 0.3 1.5 16.1 19.5 0.011 13.3 753
10x2.5 0.8 0.3 1.7 18.8 22.7 0.01 7.98 956
10x4 0.8 0.3 1.7 20.5 24.8 0.0085 4.95 1203
10x6 0.8 0.3 1.7 22.5 27.1 0.007 3.3 1534





Al-Foil Screen PVC Sheathed Cable , Multi Core Electrical Cable With Tinned Drain Wire 0



Tags:

multi core electrical cable,

multicore power cable,

multicore flexible cable
