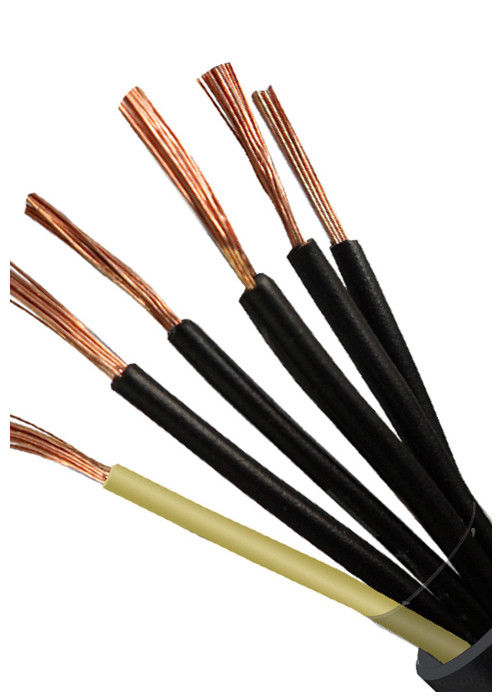

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2

MOQ: 1000m
Price: USD 0.4 To 10.5 per Meter
Standard Packaging: 100/200 Meters per Rolls or Wooden Steel Drums
Delivery Period: 10-15 Days
Supply Capacity: 8KM per Day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
CE/KEMA/CCC/TUV
Insualtion:
PVC
Sheath:
PVC
Material:
Annealed Copper
Conductor Type:
Flexible Class 5
Cores No.:
4 To 61
Size:
0.5mm2 To 10mm2
Stranded Type:
Bundle Stranded
Color:
Black Or Grey
Highlight:

multicore power cable

,

multi core electrical cable

Product Description

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2



Construction:



Conductor: Class 5 Copper Conductor

Insualtion: PVC

Sheath: PVC



Standard:



IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request





Technical data



Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D





Certificates



CE, RoHS, CCC, KEMA and more others at request



Application:



Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place





Specifications:



Cross-Sectional
Area mm2		 Thickness of
Insulation		 Thickness of
Sheath		 Overall Diameter Min resistance of
insulation at
70℃ MΩ/km		 Max.D.C resistance
of at 20℃
MΩ/km
min max
4x0.5 0.6 1.2 7.3 9.2 0.013 39
4x0.75 0.6 1.2 7.6 9.6 0.011 26
4x1.0 0.6 1.2 8 10 0.01 19.5
4x1.5 0.7 1.2 9 11.3 0.01 13.3
4x2.5 0.8 1.2 10.5 13.1 0.009 7.98
5x0.75 0.6 1.2 7.9 9.9 0.013 26
5x1.0 0.6 1.2 8.3 10.3 0.011 19.5
5x1.5 0.7 1.2 9.8 12.2 0.01 13.3
5x2.5 0.8 1.5 11.5 14.3 0.009 7.98
7x0.5 0.6 1.2 8.5 10.6 0.013 39
7x0.75 0.6 1.2 8.9 11.1 0.011 26
7x1.0 0.6 1.2 9.3 11.7 0.01 19.5
7x1.5 0.7 1.2 10.6 13.2 0.01 13.3
7x2.5 0.8 1.5 13.1 16.2 0.009 7.98
