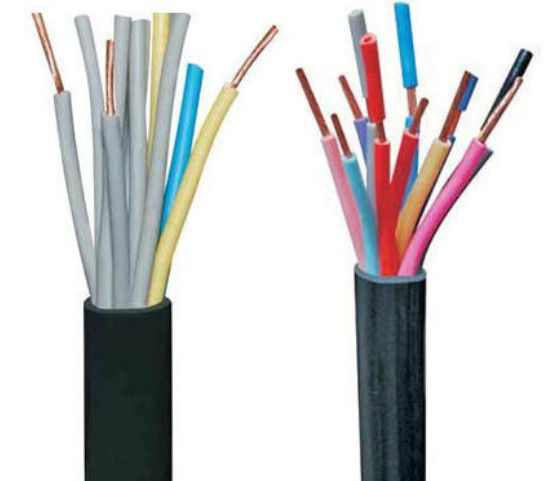

Copper Conductor PVC Insulated Multicore Control Cables , Steel Wire Armored Cable

MOQ: 1000m
Price: USD 0.4 To 10.5 per Meter
Standard Packaging: Wooden Steel Drums
Delivery Period: 10-15 Days
Supply Capacity: 8KM per Day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
CE/KEMA/CCC/TUV
Armour:
Steel Wire
Core:
7 To 61
Insulation:
PVC
Crosssection:
2.5mm2 To 10mm2
Conductor Type:
Class1 Or Class2
Inner Sheath:
PVC
Conductor:
Copper
Highlight:

multicore flexible cable

,

multicore power cable

Product Description

Copper Conductor PVC Insulated Multicore Control Cables , Steel Wire Armored Cable

Descriptions:

Conductor: Solid or Stranded Copper Conductor
Insualtion: PVC
Inner Sheath: PVC
Armor: Steel Wire
Sheath: PVC

Operating characteristics

Rated voltages U0/U: 450/750V
Permissible Max. continuous operating temperature of conductor:
PVC insulated: 70°C
Upon short circuit (Max. Duration time 5s) the Max.
temperature of conductor not higher than:
PVC insulated: 160°C;
Ambient temperature of installation not less than 0°C.
Test voltage: 3KV/5min


Bending Radius

Min. Bending Radius: 12 O.D.



Application:

For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750KV.

Standard:

IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request

Certificates

CE, RoHS, CCC, KEMA and more others at request

Specifacations


Cross-Sectional
Area mm2		 Thickness of
Insulation mm		 Diameter of
Steel Wire mm		 Thickness of
Sheath mm		 Overall Diameter
mm		 Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
7x1.5 0.7 1.6 1.8 17.5 18.7 12.1 719
7x2.5 0.8 1.6 1.8 19.3 19.9 7.41 881
7x4 0.8 1.6 1.8 21.2 22.6 4.61 1068
7x6 0.8 1.6 1.8 22.7 24.1 3.08 1288
7x10 1 2 1.9 28.6 29 1.83 2055
8x1.5 0.7 1.6 1.8 18.4 19.6 12.1 780
8x2.5 0.8 1.6 1.8 20.8 21 7.41 982
8x4 0.8 2 1.8 23.1 24.6 4.61 1355
8x6 0.8 2 1.8 24.8 26.3 3.08 1586
8x10 1 2 1.9 30.4 30.8 1.83 2261
10x1.5 0.7 1.6 1.8 20.7 21.7 12.1 927
10x4 0.8 2 1.8 23.9 24.1 4.61 1575
10x6 0.8 2 1.9 27.8 29.8 3.08 1886
10x10 1 2 2.1 35.2 35.4 1.83 2767
12x1.5 1 1.6 1.8 21.1 22.2 12.1 985
12x2.5 0.6 2 1.8 24.4 24.6 4.61 1411
12x4 0.7 2 1.8 26.4 28.3 3.08 1698
12x6 0.8 2 1.9 28.5 30.6 1.83 2052





Tags:

multi core electrical cable,

multicore power cable,

multicore flexible cable
