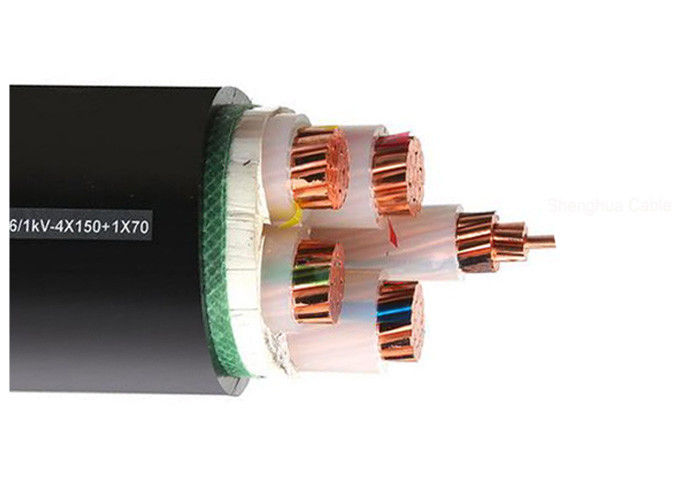

China Good Quality CU/XLPE/PVC-0.6/1KV 3x120+2x70mm2 XLPE Insulated Power Cable
Description:
0.6/1kv XLPE Insulated Electric Power cable
CU/XLPE/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA. ISO. VDE
Constructions
Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃
Sheath : PVC type ST2 to IEC 60502, black
Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6/1kV
Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Certificates
CE, RoHS, CCC, KEMA and more others at request
Ordering Advice
Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement
Technical Specifications:
| Nom. Cross-section of conductor |
Insulation Thickness |
Sheath Thickness |
Approx. O.D. |
Approx.
Weight
|
Max. D.C Resistance of Conductor (20 ℃) |
Testing Voltage A.C |
Current Rating |
| mm2 |
mm |
mm |
(mm) |
kg/km |
Ω /km |
kV/5min |
In air (A) |
In soil(A) |
| 4 × 10+ 1 × 6 |
0.7 |
1.8 |
18.3 |
649 |
1.83 |
3.5 |
60 |
77 |
| 4 × 16+ 1 × 10 |
0.7 |
1.8 |
21.1 |
965 |
1.15 |
3.5 |
83 |
105 |
| 4 × 25+ 1 × 16 |
0.9 |
1.8 |
24..5 |
1456 |
0.727 |
3.5 |
105 |
125 |
| 4 × 35+ 1 × 16 |
0.9 |
1.8 |
26.9 |
1863 |
0.524 |
3.5 |
125 |
155 |
| 4 × 50+ 1 × 25 |
1.0 |
1.9 |
28.8 |
2633 |
0.387 |
3.5 |
160 |
185 |
| 4 × 70+ 1 × 35 |
1.1 |
2.0 |
32.4 |
3565 |
0.268 |
3.5 |
200 |
225 |
| 4 × 95+ 1 × 50 |
1.1 |
2.1 |
35.6 |
4735 |
0.193 |
3.5 |
245 |
270 |
| 4 × 120+ 1 × 70 |
1.2 |
2.3 |
41.1 |
5977 |
0.153 |
3.5 |
285 |
310 |
| 4 × 150+ 1 × 70 |
1.4 |
2.4 |
43.6 |
7276 |
0.124 |
3.5 |
325 |
345 |
| 4 × 185+ 1 × 95 |
1.6 |
2.5 |
49.1 |
9055 |
0.0991 |
3.5 |
375 |
390 |
| 4 × 240+ 1 × 120 |
1.7 |
2.7 |
54.2 |
11567 |
0.0754 |
3.5 |
440 |
450 |
| 4 × 300+ 1 × 150 |
1.8 |
3.1 |
66.3 |
14321 |
0.0601 |
3.5 |
505 |
515 |
