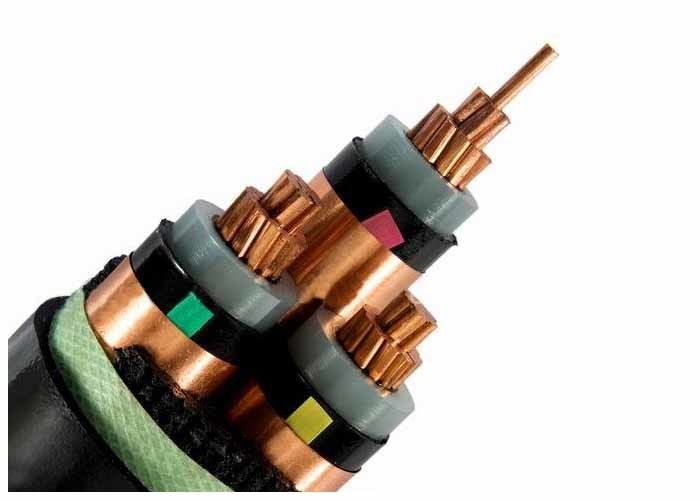

N2XSRY 12/20KV3 X300SQMM CU / CTS / PVC XLPE Insulated Cable High Voltage
  • name
  • name
  • name

N2XSRY 12/20KV3 X300SQMM CU / CTS / PVC XLPE Insulated Cable High Voltage

MOQ: 500m
Price: USD 0.16-2.88/M
Standard Packaging: Wooden Drum
Delivery Period: 7 Days
Payment Method: L/C, T/T
Supply Capacity: 86932KM/Week
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
CE/KEMA/TUV/ISO
Test Voltage:
42KV
Shield:
Copper Tape
Insulation Color:
Brown,Blue.Red
Jacket:
PVC
Conductor:
Stranded Copper
Sample:
Available
Warranty:
2 Years
Highlight:

xlpe electrical cable

,

cross linked polyethylene cable

Product Description

N2XSRY 12/20KV3 x300SQMM CU/XLPE/CTS/PVC XLPE Insulaed Power Cable High Voltage



Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage
12/20kV

Construction:

Conductor Copper Conductor as per IEC 60228,Class 2
Circular or Shaped conductor
Insulation XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional Copper tape or copper wires braiding optional
Sheath PVC or FR-PVC type ST2 to IEC 60502, black or red or customization


Ordering Advice

Rated Voltage
Application Standard: IEC/BS/UL/GB
Number of Cores
Conductor Size & Construction
Type of Insulation
Armored or unarmored. If armor, the armor type & material
The Requirement of Sheath
Length of Cable & Packing Requirement
Other Requirement


Technical data: Rated voltage 8.7/15kV
Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single core without armor
15 x cable O.D for multi core without armor
15 x cable O.D for single core with armor
12 x cable O.D for multi core with armor

Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS, DIN, VDE and ICEA upon request

Installation

1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.

Technical parameter:



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx.Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 25 7/2.14 4.5 1.8 23.0 598 0.727 30.5 140 150
1 × 35 7/2.52 4.5 1.8 24.0 680 0.524 30.5 175 180
1 × 50 10/2.52 4.5 1.9 25.0 804 0.387 30.5 205 215
1 × 70 14/2.52 4.5 1.9 27.0 984 0.268 30.5 260 265
1 × 95 19/2.52 4.5 2 29.0 1201 0.193 30.5 315 315
1 × 120 24/2.52 4.5 2 30.0 1490 0.153 30.5 365 360
1 × 150 30/2.52 4.5 2.1 32.0 1765 0.124 30.5 415 405
1 × 185 37/2.52 4.5 2.1 34.0 2091 0.0991 30.5 475 455
1 × 240 48/2.52 4.5 2.2 36.0 3034 0.0754 30.5 565 530
1 × 300 61/2.52 4.5 2.4 39.0 3672 0.0601 30.5 645 595
1 × 400 61/2.97 4.5 2.4 42.0 4646 0.0470 30.5 750 680
1 × 500 61/3.23 4.5 2.5 45.0 5651 0.0366 30.5 865 765
1 × 630 61/3.50 4.5 2.5 50.0 7154 0.0283 30.5 990 860
1 × 800 91/3.20 4.5 2.7 55.0 8750 0.0221 30.5 1140 950
1 × 1000 91/3.75 4.5 2.9 59.0 10727 0.0176 30.5 1250 1040
3 × 25 7/2.14 4.5 2.4 46.0 2573 0.727 30.5 120 125
3 × 35 7/2.52 4.5 2.6 48.0 2985 0.524 30.5 145 155
3 × 50 10/2.52 4.5 2.7 51.0 3529 0.387 30.5 175 180
3 × 70 14/2.52 4.5 2.8 55.0 4197 0.268 30.5 220 220
3 × 95 19/2.52 4.5 2.9 58.0 5230 0.193 30.5 265 265
3 × 120 24/2.52 4.5 3.0 61.0 6120 0.153 30.5 305 300
3 × 150 30/2.52 4.5 3.1 64.0 7207 0.124 30.5 350 340
3 × 185 37/2.52 4.5 3.2 68.0 8378 0.0991 30.5 395 380
3 × 240 48/2.52 4.5 3.4 73.0 10177 0.0754 30.5 470 435
3 × 300 61/2.52 4.5 3.5 77.0 12159 0.0601 30.5 535 485
3 × 400 61/2.97 4.5 3.8 86.0 15641 0.0470 30.5 610 520


Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.



N2XSRY 12/20KV3 X300SQMM CU / CTS / PVC XLPE Insulated Cable High Voltage 0

Tags:

cross linked polyethylene cable,

xlpe power cable,

xlpe electrical cable
