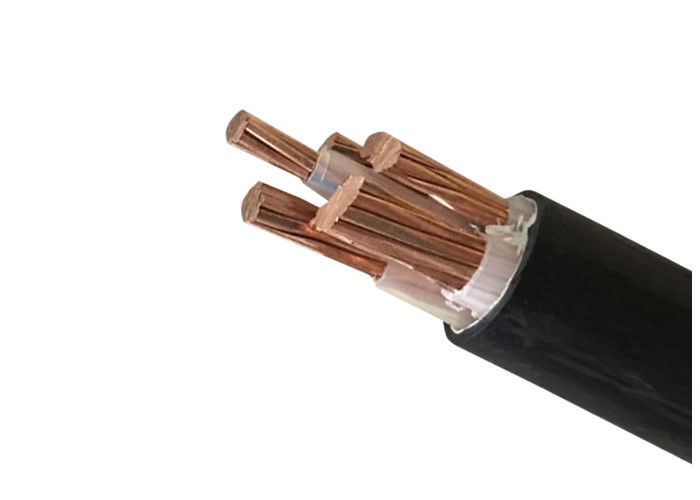

0.6/1kV Cu XLPE Power Cable ,  XLPE Electrical Cable With Black Jacket

0.6/1kV Cu XLPE Power Cable , XLPE Electrical Cable With Black Jacket

  • High Light

    xlpe electrical cable

    ,

    cross linked polyethylene cable

  • Product Name
    3 Cores LV Cable
  • Insulation
    XLPE
  • Armour
    None
  • Conductor
    Copper
  • Standard
    IEC, BS, IS, VDE
  • Free Smaple
    Available
  • Embossing
    Cable Can Be Embossed As Per Requested
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,CE,IEC,TUV,KEMA
  • Minimum Order Quantity
    500 Meters
  • Price
    US$0.51 - US$125 / Meter
  • Packaging Details
    Wooden Drums
  • Delivery Time
    10 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    21,000 KMs per Month

0.6/1kV Cu XLPE Power Cable , XLPE Electrical Cable With Black Jacket

0.6/1kV Cu XLPE Insulated PVC Sheathed Power Cable with Black Jacket



XLPE or Cross-linked polyethylene is a thermoset insulation material. Crosslinking polymers is a process which changes the molecular structure of the polymer chains so that they are more tightly bound together and this crosslinking is done either by chemical means or physical means. Chemical crosslinking involves the addition of chemicals or initiators such as silane or peroxide to generate free radicals which form the crosslinking. Physical crosslinking involves subjecting the polymer to a high energy source such as high-energy electron or microwave radiation.



Physical and Electrical Characteristics



No.cores x Insulation
thickness
Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139 164
3×50+1×25 1 0.9 1.8 27.7 1951 173 198
3×70+1×35 1.1 0.9 1.9 31.9 2662 222 246
3×95+1×50 1.1 1 2.1 36.2 3578 271 293
3×120+1×70 1.2 1.1 2.2 39.9 4567 318 334
3×150+1×70 1.4 1.1 2.3 45 5514 370 375
3×185+1×95 1.6 1.1 2.5 49.4 6850 427 422
3×240+1×120 1.7 1.2 2.7 54.9 8741 507 492
3×300+1×150 1.8 1.4 2.9 62.9 11052 599 560



Using features:



XLPE/PVC insulated electrical wire are covering series of wire products, and its working temperature isdifferent according to different insulation materials, mainly 70 and 90 degrees temperature, etc.



According to the conductor type, including solid conductor PVC/XL .PE insulated electrical wire,standed PVC/XL PE insulated wire, Flexible PVC/XLPE insulated wire with different colors.



According to its shape, including flat wire, round wire, etc. with different colors.



Accoding to its core number, including single core wire, multi-core wire, etc. with different colors.



The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit(Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than250.



D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.



The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.The cable is laid without horizontal drop limit. The Min. Bending radius of three core cable should be nosmaller than 12 times of cable outer diameter.

Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.





RECOMMENDED ORDERING PARAMETERS



For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :



1 International or Special Standard. (Alternatively, the precise usage of the cable.)

2 Rated voltage.

3 Copper or Aluminium conductors.

4 Size of each conductor.

5 Insulation material : PVC XLPE or others.

6 Number and identification of conductors.

7 Other requirements.

8 Packing.

9 Required delivery time.

10 Required validity.



If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
