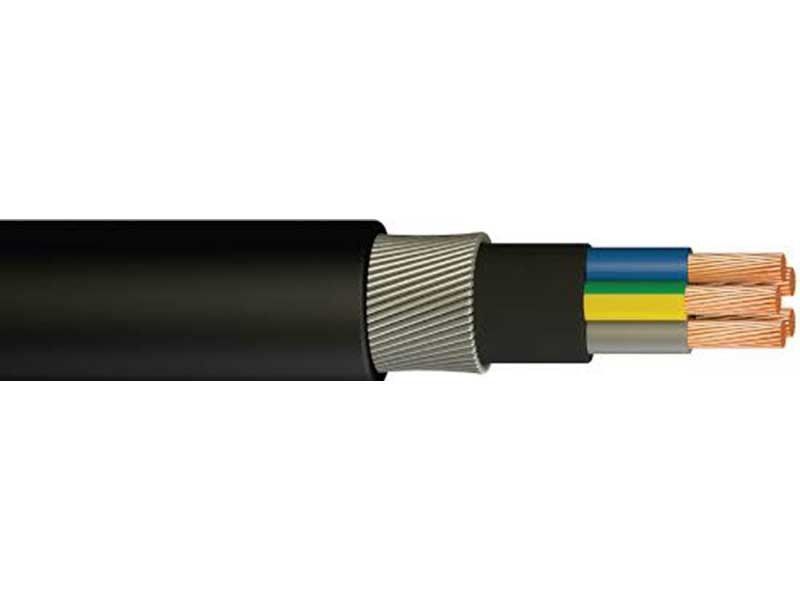

BS 7889 Low Voltage XLPE Insulated Wire , MV Power Cable Stranded Class 2

BS 7889 Low Voltage XLPE Insulated Wire , MV Power Cable Stranded Class 2

  • High Light

    xlpe power cable

    ,

    cross linked polyethylene cable

  • Conductor Material
    Copper
  • Conductor Flexibility
    Stranded Class 2
  • Wrapping
    XLPE (Chemical)
  • Outer Sheath
    PVC
  • Working Degree
    90℃
  • Bending Radius
    15 X Ø
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/IEC/KEMA/VDE
  • Minimum Order Quantity
    200 m
  • Price
    USD 1-299 Per Meter
  • Packaging Details
    Iron-wooden Drum or Whole Wooden Drum
  • Delivery Time
    8-15 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100km per Month

BS 7889 Low Voltage XLPE Insulated Wire , MV Power Cable Stranded Class 2

BS 7889 Low Voltage XLPE Insulated and PVC sheathed MV Power Cable


The mechanical properties of the XLPE are superior to many other insulations, offering greater tensile strength, elongation and impact resistances. The addition of carbon black can be used to further enhance hot deformation and cut through resistance. The XLPE insulation will not melt or drip, even at the temperatures of soldering irons, and it has increased flow resistance and improved ageing characteristics.



Physical and Electrical Characteristics



No.cores x Insulation
thickness
Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139 164
3×50+1×25 1 0.9 1.8 27.7 1951 173 198
3×70+1×35 1.1 0.9 1.9 31.9 2662 222 246
3×95+1×50 1.1 1 2.1 36.2 3578 271 293
3×120+1×70 1.2 1.1 2.2 39.9 4567 318 334
3×150+1×70 1.4 1.1 2.3 45 5514 370 375
3×185+1×95 1.6 1.1 2.5 49.4 6850 427 422
3×240+1×120 1.7 1.2 2.7 54.9 8741 507 492
3×300+1×150 1.8 1.4 2.9 62.9 11052 599 560



Using features:



XLPE/PVC insulated electrical wire are covering series of wire products, and its working temperature isdifferent according to different insulation materials, mainly 70 and 90 degrees temperature, etc.



According to the conductor type, including solid conductor PVC/XL .PE insulated electrical wire,standed PVC/XL PE insulated wire, Flexible PVC/XLPE insulated wire with different colors.



According to its shape, including flat wire, round wire, etc. with different colors.



Accoding to its core number, including single core wire, multi-core wire, etc. with different colors.



The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit(Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than250.



D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.



The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.The cable is laid without horizontal drop limit. The Min. Bending radius of three core cable should be nosmaller than 12 times of cable outer diameter.

Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.





RECOMMENDED ORDERING PARAMETERS



For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :



1 International or Special Standard. (Alternatively, the precise usage of the cable.)

2 Rated voltage.

3 Copper or Aluminium conductors.

4 Size of each conductor.

5 Insulation material : PVC XLPE or others.

6 Number and identification of conductors.

7 Other requirements.

8 Packing.

9 Required delivery time.

10 Required validity.



If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
