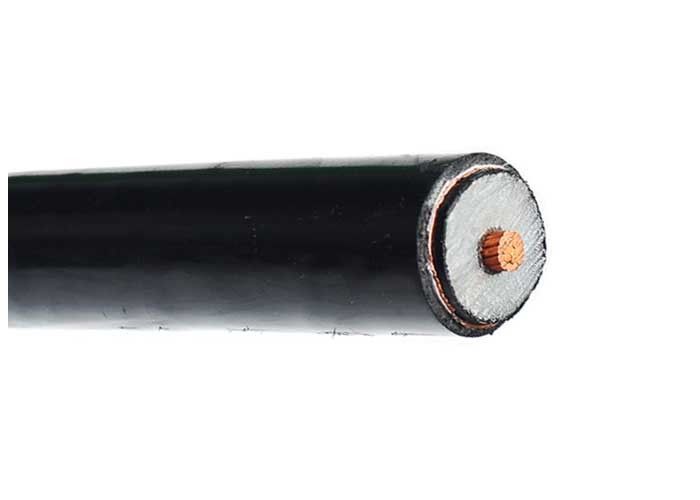

Medium Voltage Single Core XLPE Insulated Power Cable From 25 sqmm to 800sqmm

MOQ: 500m
Price: USD 1.25-8.99/M
Standard Packaging: wooden Drum
Delivery Period: 10-15 days
Payment Method: L/C, T/T
Supply Capacity: 84320km/Week
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
CE/KEMA/ISO/TUV
Conductor Material:
Compact Stranded Copper
Insulation Material:
Cross-Linked XLPE
Standard:
IEC60502-2
Shield Material:
Copper Tape
Jacket Material:
PVC-ST2
Max.Conductor Tepm:
90 Degree
Highlight:

xlpe power cable

,

cross linked polyethylene cable

Product Description

Medium Voltage Single-Core XLPE Insulated Power Cable From 25 sqmm to 800sqmm



Construction



Conductor: Annealed Aluminum Conductor as per IEC 60228

≤ 6mm2 solid (class 1) or stranded (class 2)

＞ 6mm2 stranded (class 2)

Flexible conductor (class 5) optional.

Insulation: XLPE (Cross-Linked Polyethylene) rated at 90℃

Metallic Screen optional: Copper tape or copper wires screen optional

Sheath: PVC or FR-PVC type ST2 to IEC 60502, black or red or customization



Applications



For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards



International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN and ICEA upon request



Installation



1. The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
2. The bending radius of cable should not less than 8 times.



Technical Data:



Nom. Cross-section of conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 mm mm mm kg/km Ω /km kV/5min In air (A) In soil (A)
1×70 10.5 2.4 41 1604 0.443 91 265 270
1×95 10.5 2.4 43 1767 0.320 91 320 325
1×120 10.5 2.4 44 1923 0.253 91 370 370
1×150 10.5 2.5 46 2103 0.206 91 420 420
1×185 10.5 2.5 48 2282 0.164 91 480 480
1×240 10.5 2.6 50 2584 0.125 91 565 560
1×300 10.5 2.7 53 2891 0.100 91 650 640
1×400 10.5 2.8 56 3325 0.0778 91 780 760
1×500 10.5 2.9 59 4076 0.0605 91 915 875
1×630 10.5 3.0 63 4305 0.0469 91 1030 990
1×800 10.5 3.1 68 5054 0.0367 91 1180 1140
1×1000 10.5 3.3 72 5878 0.0291 91 1350 1280
1×1200 10.5 3.4 76 6657 0.0247 91 1500 1390






Medium Voltage Single Core XLPE Insulated Power Cable From 25 sqmm to 800sqmm 0
