0.6 / 1kV Low Voltage KEMA 4 Core Copper Xlpe Insulation Cable Electrical Cable
  • name
  • name
  • name
  • name

0.6 / 1kV Low Voltage KEMA 4 Core Copper Xlpe Insulation Cable Electrical Cable

MOQ: 500m
Price: USD (0.5-100) per meter
Standard Packaging: Steel wooden drum packing with the Iron protection
Delivery Period: 7-15 days
Supply Capacity: 100 km per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
IEC/CE/KEMA
Rated Voltage:
0.6/1kV
Conductor Material:
Stranded Copper Conductor
Product Structure:
CU/XLPE/PVC
Cross Section Area:
1.5-800 Mm2
Outer Sheath Color:
Black Or As Per Required
Sample:
Available
Packing Style:
Steel Wooden Drum
Highlight:

xlpe electrical cable

,

cross linked polyethylene cable

Product Description

0.6/1kV Low Voltage KEMA Certified four core Copper XLPE Insulated Power cable Electrical cable



Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90℃
Outer sheath : PVC





CODE Designation:



YJ: XLPE insulation

V: PVC sheath





Applications:



Suitable for use in power distribution lines with rated voltage 0.6/1 KV. These cables have a low dielectric loss, used in indoors, in cable ducts, underground, in power or switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.





Standards:



International: IEC 60502-1, IEC 60228

China: GB/T 12706.1-2008

Germany: VDE 0276

Britain: BS 7889





Technical data:



Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x D

D: Cable outer diameter

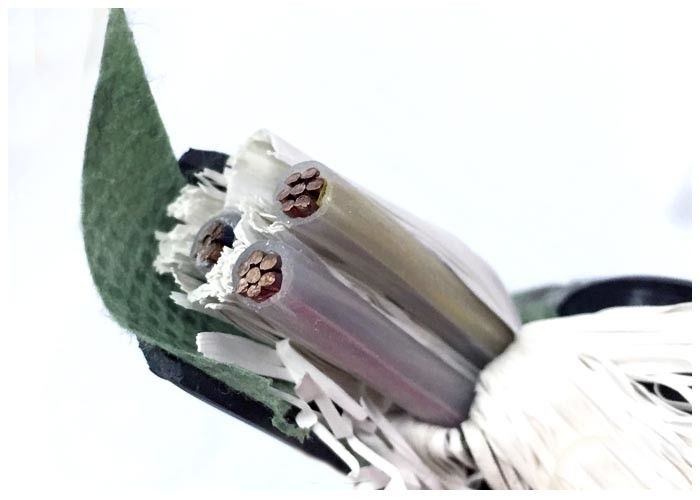

Construction:



1. Solid or Stranded copper conductor



2. XLPE insulation



3. Filler



4.PVC outer sheath





Certificates:



CE, RoHS, CCC, KEMA and more others at request



Technical Specifications



Nom. Cross-section of conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx.
Weight		 Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm (mm) (mm) (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
4 × 4 0.7 1.8 13.0 253 4.61 3.5 34 45
4 × 6 0.7 1.8 14.0 337 3.08 3.5 43 57
4 × 10 0.7 1.8 17.0 501 1.83 3.5 60 77
4 × 16 0.7 1.8 20.0 778 1.15 3.5 83 105
4 × 25 0.9 1.8 23.0 1160 0.727 3.5 105 125
4 × 35 0.9 1.8 25 1554 0.524 3.5 125 155
4 × 50 1.0 1.8 23 2148 0.387 3.5 160 185
4 × 70 1.1 1.8 27 2928 0.268 3.5 200 225
4 × 95 1.1 1.9 31 3854 0.193 3.5 245 270
4 × 120 1.2 2.0 33 4925 0.153 3.5 285 310
4 × 150 1.4 2.2 38 6238 0.124 3.5 325 345
4 × 185 1.6 2.3 42 7562 0.0991 3.5 375 390
4 × 240 1.7 2.5 47 9836 0.0754 3.5 440 450
4 × 300 1.8 2.6 52 12550 0.0601 3.5 505 515
4 × 400 2.0 3.1 66 15929 0.0470 3.5 570 575







0.6 / 1kV Low Voltage KEMA 4 Core Copper Xlpe Insulation Cable Electrical Cable 0
