ABC 1KV Electrical Insulated Aerial Bundled Cable Without Street Lighting
  • name
  • name

ABC 1KV Electrical Insulated Aerial Bundled Cable Without Street Lighting

MOQ: 500M
Price: 0.19-10.99USD/m
Standard Packaging: Wooden Drum/ Steel Drum
Delivery Period: 15 Days
Payment Method: L/C, D/A, D/P, T/T
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
ASTM B-231,B232,B399, ICEA S-76-47
Phase Conductor:
Aluminium
Neutral Or Messenger:
Aluminium Alloy Conductor And Compacted Circular Stranded
Application:
Overhead Power Transmission Lines
Insulation:
XLPE Or PVC
Voltage:
0.6/1 KV
Cores:
3.4.5.6.
Highlight:

xlpe electrical cable

,

xlpe power cable

Product Description

0.6/1(1.2)kV AL/XLPE(PE) Insulated

Aerial Bundled Cables without Street Lighting Conductor










Description
The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.
Construction

  1. Conductor:



a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.

b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.

  1. Insulation:


The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.

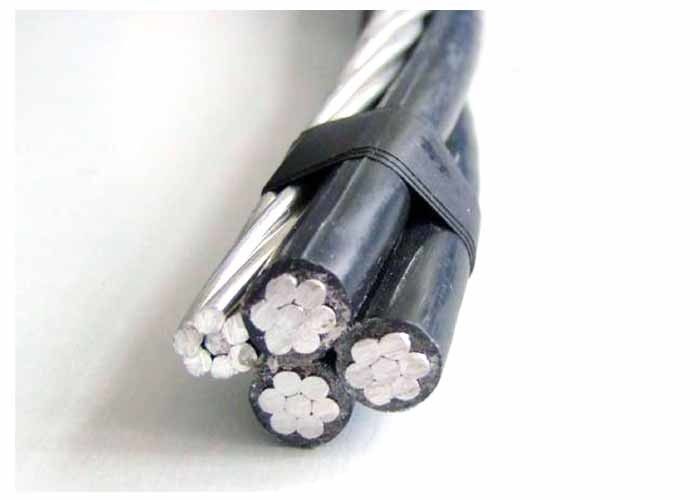

ABC 1KV Electrical Insulated Aerial Bundled Cable Without Street Lighting 0

Schedule of technical particulars

Phase conductor
Nominal cross-sectional areamm²16162535507095120150185
Number of cores 1333333333
Minimum number of wires 666661215153030
Nominal insulation thicknessmm111.21.21.41.41.61.61.82.0
Diameter of insulated coremm6.86.88.59.511.213.015.116.618.420.6
Max. DC resistance at 20℃ohm/km1.911.911.200.8680.6410.4430.3200.2530.2060.164
Current rating at still wind, ambientA616184104129167209246283332
temperature=30℃
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional areamm²252525253550707095120
Minimum number of wires 66666612121515
Nominal insulation thicknessmm1.21.21.21.21.21.41.41.41.61.6
Diameter of insulated coremm8.58.58.58.59.511.213.113.115.116.6
Max. DC resistance at 20℃ohm/km1.3121.3121.3121.3120.9430.6930.4690.4690.3490.273
Calculated breaking loadkN6.46.46.46.48.912.118.018.024.230.8
Completed cable
Approx. overall diametermm15.319.023.225.630.034.940.644.149.254.9
Approx. weight of cablekg/km1602904005006809201270151018702340
Packing lengthm/drum100010001000100010001000500500500500



Tags:

cross linked polyethylene cable,

xlpe power cable,

xlpe electrical cable
