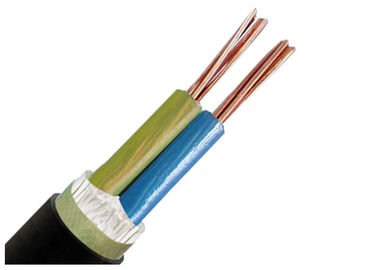

Custom N2XY XLPE Insulated Cable 25Sq mm Environmental Protection

Custom N2XY XLPE Insulated Cable 25Sq mm Environmental Protection

  • High Light

    xlpe electrical cable

    ,

    xlpe power cable

  • Product Name
    XLPE Insulated Power Cable
  • Cross Section Area
    25 Sqmm
  • Outer Sheath Color
    Black Or As Per Request
  • Applications
    Power Distribution / Transmission Line
  • Cable Mark
    Ink Printing Or Embossing
  • Manufacturer
    Top 3 China Cable Manufacturer
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/IEC/KEMA/VDE
  • Minimum Order Quantity
    200 m
  • Price
    USD 1-300 Per Meter
  • Packaging Details
    Iron-wooden Drum or Whole Wooden Drum
  • Delivery Time
    5 days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram,
  • Supply Ability
    100km per Month

Custom N2XY XLPE Insulated Cable 25Sq mm Environmental Protection

Custom N2XY XLPE Insulated Power Cable 25Sq mm Environmental Protection



XLPE is Cross-linked Polyethylene.. The process of cross-linking or vulcanisation consists of producing chemical bonds at intervals between the long molecular chains to give a “ladder” effect which prevents slippage between molecules. As a result of cross-linking, the material becomes heat resistant and does not soften at high temperatures. It develops resistance to stress cracking and ageing . With the change in structure, the XLPE derives superior electrical properties. XLPE Cables have higher current rating and longer service life compared to PVC Cables. Under short circuit condition,this cable can withstand up to 250ºC temperature compared to 160ºC for PVC cables.



No.cores x Insulation
thickness
Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139 164
3×50+1×25 1 0.9 1.8 27.7 1951 173 198
3×70+1×35 1.1 0.9 1.9 31.9 2662 222 246
3×95+1×50 1.1 1 2.1 36.2 3578 271 293
3×120+1×70 1.2 1.1 2.2 39.9 4567 318 334
3×150+1×70 1.4 1.1 2.3 45 5514 370 375
3×185+1×95 1.6 1.1 2.5 49.4 6850 427 422
3×240+1×120 1.7 1.2 2.7 54.9 8741 507 492
3×300+1×150 1.8 1.4 2.9 62.9 11052 599 560



Using features:



XLPE/PVC insulated electrical wire are covering series of wire products, and its working temperature isdifferent according to different insulation materials, mainly 70 and 90 degrees temperature, etc.



According to the conductor type, including solid conductor PVC/XL .PE insulated electrical wire,standed PVC/XL PE insulated wire, Flexible PVC/XLPE insulated wire with different colors.



According to its shape, including flat wire, round wire, etc. with different colors.



Accoding to its core number, including single core wire, multi-core wire, etc. with different colors.



The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit(Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than250.



D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.



The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.The cable is laid without horizontal drop limit. The Min. Bending radius of three core cable should be nosmaller than 12 times of cable outer diameter.

Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.





RECOMMENDED ORDERING PARAMETERS



For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :



1 International or Special Standard. (Alternatively, the precise usage of the cable.)

2 Rated voltage.

3 Copper or Aluminium conductors.

4 Size of each conductor.

5 Insulation material : PVC XLPE or others.

6 Number and identification of conductors.

7 Other requirements.

8 Packing.

9 Required delivery time.

10 Required validity.



If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.

XLPE is suitable for voltage ranges from low to extra high voltage, surpassing other insulation materials such as PVC, Ethylene Propylene Rubber (EPR) and silicone rubbers. Cross-linking the polyethylene also enhances the chemical and oil resistance at elevated temperatures and makes it suitable for use as a Low Smoke Zero Halogen material.
