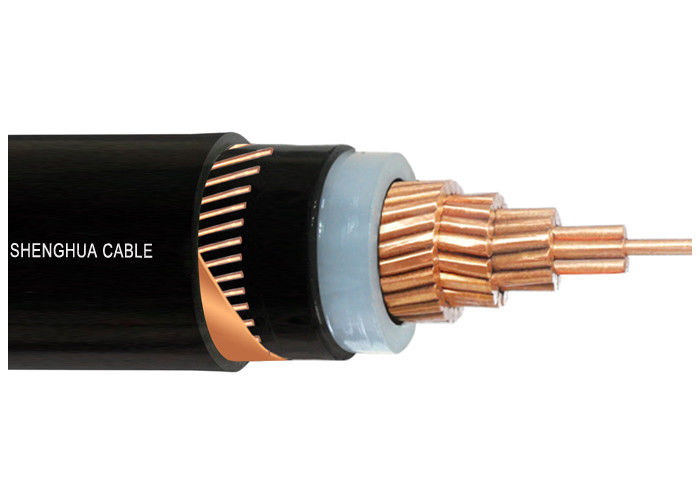

Single Core XLPE Insulated Power Cable Copper Conductor with the Metal Screen
  • name
  • name
  • name
  • name

Single Core XLPE Insulated Power Cable Copper Conductor with the Metal Screen

MOQ: 500
Price: USD 0.5-95.6 PER METER
Standard Packaging: Steel Wooden Drum
Delivery Period: 8 days
Payment Method: Western Union, L/C, T/T, MoneyGram
Supply Capacity: 100KM Per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
IEC/KEMA/CE
Insulation Color:
Nature Or As Per Request
Outer Sheath Color:
Black Or As Per Request
Drum Length:
1000m Per Drum Or As Per Request
Cable Mark:
Ink Printing Or Embossing
Core Mark:
Number With Ink Or Color Strip
Conductor:
Compacted Stranded Copper Conductor, Class 2
Highlight:

xlpe power cable

,

cross linked polyethylene cable

Product Description

Single Core XLPE Insulated Power Cable Copper Conductor with the Metal Screen





Description:



3.6/6kv single core XLPE Insulated unarmored Power cables

CU/XLPE/CTS&CWS/PVC, IEC 60502

IEC 60502, IEC 60228, GB/T 12706.1-2008.

CE, CCC, KEMA, RoHS, ISO



Constructions



Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 ℃

Insulation Screen: Semi-conductor

Screen : Copper tape or copper wire

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black



Applications



For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.



Standards



International: IEC 60502, IEC 60228

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request



Technical data



Rated voltage: 3.6/6kv

Max. Conductor Temp.: normal (90℃), short circuit no more than 5 s (160℃ when section-area below 300mm2, 140℃ when section-area above 300mm2)

Min. Ambient Temperature: The cable shall be pre heated if the ambient temperature is below 0℃

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%



Certificates



CE, RoHS, CCC, KEMA and more others at request



Technical parameter:



Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

 Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 25 7/2.14 2.5 1.5 18.0 619 0.727 12.5 135 150
1 × 35 7/2.52 2.5 1.5 19.0 737 0.524 12.5 165 180
1 × 50 10/2.52 2.5 1.6 20.0 901 0.387 12.5 200 215
1 × 70 14/2.52 2.5 1.6 22.0 1128 0.268 12.5 250 265
1 × 95 19/2.52 2.5 1.7 23.0 1391 0.193 12.5 305 315
1 × 120 24/2.52 2.5 1.8 25.0 1655 0.153 12.5 355 360
1 × 150 30/2.52 2.5 1.8 26.0 1961 0.124 12.5 405 405
1 × 185 37/2.52 2.5 1.9 28.0 2334 0.0991 12.5 465 455
1 × 240 48/2.52 2.6 1.9 30.0 2904 0.0754 12.5 550 530
1 × 300 61/2.52 2.8 2.0 33.0 3547 0.0601 12.5 635 595
1 × 400 61/2.97 3.0 2.2 37.0 4572 0.0470 12.5 745 680
1 × 500 61/3.23 3.2 2.3 41.0 5630 0.0366 12.5 855 765
1 × 630 61/3.50 3.2 2.4 45.0 6922 0.0283 12.5 980 860
1 × 800 91/3.20 3.2 2.5 50.0 8252 0.0221 12.5 1130 950
1 × 1000 91/3.75 3.2 2.6 54.8 10548 0.0176 12.5 1240 1040
Tags:

cross linked polyethylene cable,

xlpe power cable,

xlpe electrical cable
