0.6/1kV Low Voltage Copper XLPE Insulated Power cable Electrical cable
  • name
  • name
  • name
  • name

0.6/1kV Low Voltage Copper XLPE Insulated Power cable Electrical cable

MOQ: 500m
Price: USD (0.5-100) per meter
Standard Packaging: Steel wooden drum packing with the Iron protection
Delivery Period: 7-15 days
Supply Capacity: 100 km per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
IEC/CE/KEMA
Rated Voltage:
0.6/1kV
Conductor Material:
Stranded Copper Conductor
Product Structure:
CU/XLPE/PVC
Cross Section Area:
1.5-800 Mm2
Outer Sheath Color:
Black Or As Per Required
Sample:
Available
Highlight:

xlpe power cable

,

cross linked polyethylene cable

Product Description

Low Voltage 0.6/1kV Copper XLPE insulated Power Cable



Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228
Insulation : XLPE(cross-linked polyethylene) rated at 90℃
Outer sheath : PVC





CODE Designation:



YJ: XLPE insulation

V: PVC sheath





Applications:



Suitable for use in power distribution lines with rated voltage 0.6/1 KV. These cables have a low dielectric loss, used in indoors, in cable ducts, underground, in power or switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.





Standards:



International: IEC 60502-1, IEC 60228

China: GB/T 12706.1-2008

Germany: VDE 0276

Britain: BS 7889





Technical data:



Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 12 x D

D: Cable outer diameter

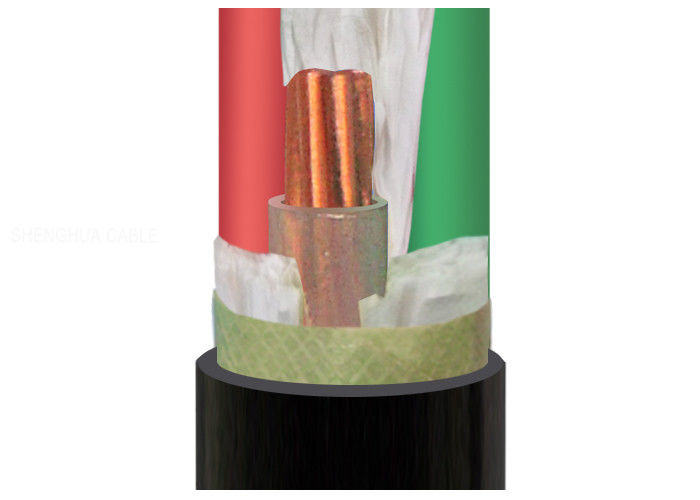

Construction:



1. Solid or Stranded copper conductor



2. XLPE insulation



3. Filler



4.PVC outer sheath





Certificates:



CE, RoHS, CCC, KEMA and more others at request



Technical Specifications

Nom. Cross-section of conductor Strands No./Dia. of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx

.Weight

 Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm Lower Limit (mm) kg/km Ω /km kV/5min In air (A) Direct In soil(A)
1 × 1.5 1/1.38 0.7 1.5 6 53 12.1 3.5 26 33
1 × 2.5 1/1.78 0.7 1.5 6 68 7.41 3.5 34 43
1 × 4 1/2.25 0.7 1.5 7 87 4.61 3.5 44 56
1 × 6 1/2.76 0.7 1.5 7 110 3.08 3.5 56 70
1 × 10 7/1.38 0.7 1.5 8 155 1.83 3.5 77 94
1 × 16 7/1.78 0.7 1.5 9 220 1.15 3.5 100 120
1 × 25 7/2.14 0.9 1.5 10.0 345 0.727 3.5 130 155
1 × 35 7/2.52 0.9 1.5 12.0 424 0.524 3.5 160 185
1 × 50 10/2.52 1.0 1.5 13.0 555 0.387 3.5 195 220





Tags:

cross linked polyethylene cable,

xlpe power cable,

xlpe electrical cable
