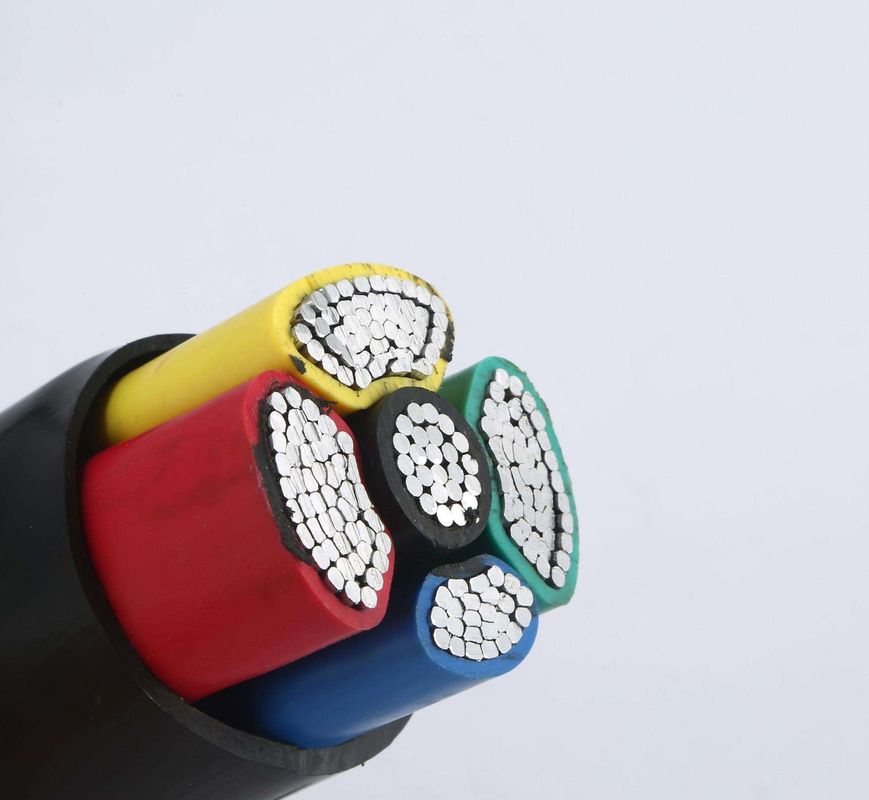

5 Core 25 Square Millimeter Pe Xlpe Insulated Power Cable
Power cable, copper core, XLPE insulation, polyethylene sheath
Number: YJLV
Rated voltage 0.6 / 1 KV
Standard: GB/T 12706.1-2008, IEC 60502-2004
This product is suitable for transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz line
Other power cords:
Copper core power cable with XLPE or PVC insulation, PVC or PE outer sheath, STA armored or non-armored power cable/cable
Type: VV, YJV, VV22, YJV22, VV23, YJV23, NH-VV2 2
Number of cores: single core, 2 cores, 3 cores, 4 cores, 5 cores
Production range: 1.5mm2, 2.5mm2, 4mm2, 6mm, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2 400mm2, 500mm2, 630 square millimeters
Related voltage: 300/300v, 300/500v, 450/750v, 0.6/1kV
Application:
This product is suitable for transmission and distribution under AC rated voltage 0.6/1kv and working frequency 50Hz.
Low-voltage power cables are used for power transmission and distribution in 1kV power transmission and distribution systems. It is widely used in electric power, mining, construction, metallurgy, petrochemical and communication fields, and completely replaces oil-immersed paper-insulated power cables.
XLPE insulated power cables XLPE insulated power cables have more advantages than paper insulated cables and PVC insulated cables. Cross-linked polyethylene cables have high electrical strength, mechanical strength, high aging resistance, environmental stress resistance, chemical corrosion resistance, simple structure, convenient use, and long-term high-temperature operation. It can be placed without a drop limit.
| Voltage rating for XLPE Power Cable | No. x Nominal Cross Section of Conductor No. x mm2 | |||||||
| 1 core | 2 core | 3 core | 3+1 core | 4core | 3+2 core | 4+1 core | 5 core | |
| 0.6/1 kV | 1x4 mm2 | 2x4 mm2 | 3x4 mm2 | 3x4 mm2 + 1x2.5mm2 | 4x4 mm2 | 3x4 mm2 + 2x2.5mm2 | 4x4 mm2 + 1x2.5mm2 | 5x2.5 mm2 |
| 1x6 mm2 | 2x6 mm2 | 3x6 mm2 | 3x6 mm2 + 1x4 mm2 | 4x6 mm2 | 3x6 mm2 + 2x4 mm2 | 4x6 mm2 + 1x4 mm2 | 5x4 mm2 | |
| 1x10 mm2 | 2x10 mm2 | 3x10 mm2 | 3x10 mm2 + 1x6 mm2 | 4x10 mm2 | 3x10 mm2 + 2x6 mm2 | 4x10 mm2 + 1x6 mm2 | 5x6 mm2 | |
| 1x16 mm2 | 2x16 mm2 | 3x16mm2 | 3x16 mm2 + 1x10 mm2 | 4x16 mm2 | 3x16 mm2 + 2x10 mm2 | 4x16 mm2 + 1x10 mm2 | 5x10 mm2 | |
| 1x 25 mm2 | 2x 25 mm2 | 3x 25 mm2 | 3x25 mm2 + 1x16mm2 | 4x25 mm2 | 3x25 mm2 + 2x16mm2 | 4x25 mm2 + 1x16mm2 | 5x16 mm2 | |
| 1x35 mm2 | 2x35 mm2 | 3x 35 mm2 | 3x35 mm2 + 1x16mm2 | 4x35 mm2 | 3x35 mm2 + 2x16mm2 | 4x35 mm2 + 1x16mm2 | 5x25 mm2 | |
| 1x50 mm2 | 2x50 mm2 | 3x 50 mm2 | 3x50 mm2 + 1x25mm2 | 4x50 mm2 | 3x50 mm2 + 2x25mm2 | 4x50 mm2 + 1x25mm2 | 5x35 mm2 | |
| 1x70 mm2 | 2x70 mm2 | 3x 70 mm2 | 3x70 mm2 + 1x35mm2 | 4x70 mm2 | 3x70 mm2 + 2x35mm2 | 4x70 mm2 + 1x35mm2 | 5x50 mm2 | |
| 1x95 mm2 | 2x95 mm2 | 3x 95 mm2 | 3x95 mm2 + 1x50mm2 | 4x95 mm2 | 3x95 mm2 + 2x50mm2 | 4x95 mm2 + 1x50mm2 | 5x70 mm2 | |
| 1x120 mm2 | 2x120 mm2 | 3x 120 mm2 | 3x120mm2 + 1x70mm2 | 4x120 mm2 | 3x120mm2 + 2x70mm2 | 4x120mm2 + 1x70mm2 | 5x95 mm2 | |
| 1x150 mm2 | 2x150 mm2 | 3x 150 mm2 | 3x150mm2 + 1x70mm2 | 4x150 mm2 | 3x150mm2 + 2x70mm2 | 4x150mm2 + 1x70mm2 | ||
| 1x185 mm2 | 2x185 mm2 | 3x 185 mm2 | 3x185mm2 + 1x95mm2 | 4x185 mm2 | 3x185mm2 + 2x95mm2 | 4x185mm2 + 1x95mm2 | ||
| 1x240 mm2 | 3x 240 mm2 | 3x240mm2 + 1x120mm2 | 4x240 mm2 | 3x240mm2 + 2x120mm2 | 4x240mm2 + 1x120mm2 | |||
| 1x300 mm2 | 3x 300 mm2 | 3x300mm2 + 1x150mm2 | 4x300 mm2 | 3x300mm2 + 2x150mm2 | 4x300mm2 + 1x150mm2 | |||
| 1x400 mm2 | ||||||||
| 1x500 mm2 | ||||||||
Advantages of XLPE cable:
XLPE cable has a higher long-term working temperature and larger rated current, and under the same environment, the size (normal cross section) of XLPE cable may be 1 or 2 smaller than PVC cable. These not only improve the quality and performance of the product, but also reduce the production cost of the cable. Steel tape armored cables for armored cables can enhance the mechanical properties of the cables, and the cables can withstand external mechanical pressure.
Steel belt armor/steel foil armor, steel wire armor/steel wire armor/SWA. Steel tape armored cable model: VV22, VV23, VLV22, VLV23, YJ V22, YJV23, YJLV22, YJLV23, ZR-VV22, NH-VV2 2, WDZ-YJV22, WDZ-YJV23, WDZ-YJY22
Use function:
1. The long-term allowable working temperature of the cable conductor does not exceed 70℃
2. When a short circuit occurs (the longest duration does not exceed 5 seconds), the maximum temperature of the cable conductor does not exceed 160°C.
3. When the cable is laid, the ambient temperature should not be lower than 0℃. When the temperature is lower than 0℃, preheat it first.
4. The minimum bending radius of the multi-core non-armoured cable should not be less than 12 times the cable outer diameter, and the minimum bend radius of the multi-core armored cable should not be less than 15 times the cable outer diameter. The minimum bending radius of a single-core armored cable should not be less than 15 times the outer diameter of the cable, and the minimum bending radius of a single-core unarmored cable should not be less than 20 times the outer diameter of the cable.
5. The structural parameters of the cross-linked polyethylene insulated power cable with a rated voltage of 0.6 / 1KV
