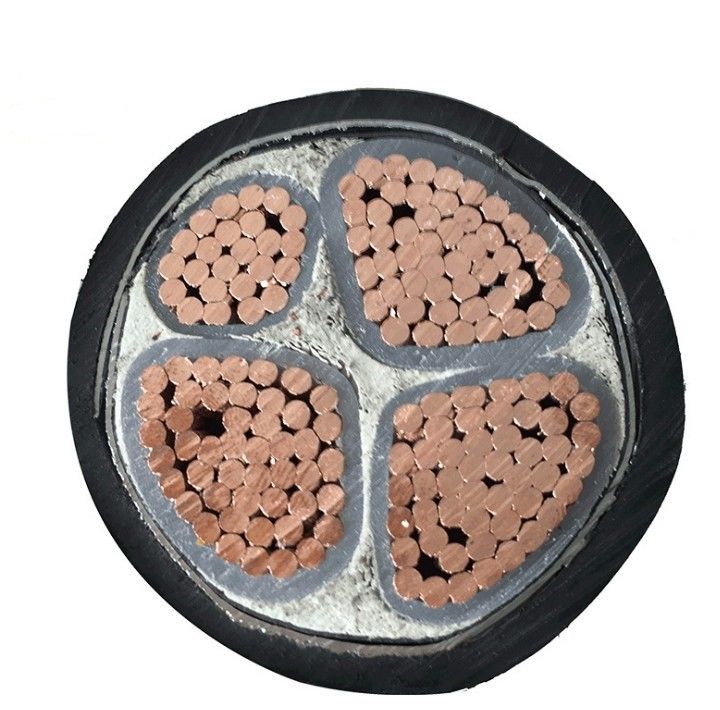

Copper Core 120mm2 150mm2 Xlpe Insulated Electrical Power Cable

Copper Core 120mm2 150mm2 Xlpe Insulated Electrical Power Cable

  • High Light

    Xlpe Insulated Electrical Power Cable

    ,

    150mm2 Electrical Power Cable

    ,

    Corrosion Resistance XLPE Insulated Cable

  • Name
    Copper Conductor Cable
  • Conductor Material
    Copper
  • Standard
    IEC 60502-1
  • Outer Sheath
    PVC
  • Color
    Customized
  • Type
    XLPE Underground Cable
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/IEC/KEMA/VDE
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Iron-wooden Drum or Whole Wooden Drum
  • Delivery Time
    8-15 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100km per Month

Copper Core 120mm2 150mm2 Xlpe Insulated Electrical Power Cable

Copper Core 120mm2 150mm2 Xlpe Insulated Electrical Power Cable



Power cables are used in power transmission and distribution lines. They not only have excellent electrical and mechanical properties, but also have strong resistance to chemical corrosion, thermal aging and environmental stress.



All type of Low Voltage XLPE Insulated PVC Sheathed Power Cable.

1). 0.6/1kV, Single Core, Cu or Al/XLPE/PVC Power Cable;
0.6/1kV, Single Core, Cu or Al/XLPE/PVC/AWA/PVC Power Cable;

(2). 0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(3). 0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(4). 0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3 +1Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(5). 0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(6). 0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(7). 0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(8). 0.6/ 1kV ,3+2 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Features:



Conductor: Creep resistance, high flexibility, strong extensibility, low rebound rate, connection stability.

Insulation: high temperature resistance, anti-combustion, anti-aging, sturdy and durable, low-carbon environment.

Armor layer: lower cost and better performance, a special form of interlocking, firm and tough.

Outer sheath: PVC does not contain lead or cadmium. It can be installed in damp places, or directly buried or laid in buildings.

Property:
1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4.Excellent electrical performance, resistance to chemical corrosion.
5.They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.

Voltage rating for XLPE Power Cable No. x Nominal Cross Section of Conductor No. x mm2
1 core 2 core 3 core 3+1 core 4core 3+2 core 4+1 core 5 core
0.6/1 kV 1x4 mm2 2x4 mm2 3x4 mm2 3x4 mm2 + 1x2.5mm2 4x4 mm2 3x4 mm2 + 2x2.5mm2 4x4 mm2 + 1x2.5mm2 5x2.5 mm2
1x6 mm2 2x6 mm2 3x6 mm2 3x6 mm2 + 1x4 mm2 4x6 mm2 3x6 mm2 + 2x4 mm2 4x6 mm2 + 1x4 mm2 5x4 mm2
1x10 mm2 2x10 mm2 3x10 mm2 3x10 mm2 + 1x6 mm2 4x10 mm2 3x10 mm2 + 2x6 mm2 4x10 mm2 + 1x6 mm2 5x6 mm2
1x16 mm2 2x16 mm2 3x16mm2 3x16 mm2 + 1x10 mm2 4x16 mm2 3x16 mm2 + 2x10 mm2 4x16 mm2 + 1x10 mm2 5x10 mm2
1x 25 mm2 2x 25 mm2 3x 25 mm2 3x25 mm2 + 1x16mm2 4x25 mm2 3x25 mm2 + 2x16mm2 4x25 mm2 + 1x16mm2 5x16 mm2
1x35 mm2 2x35 mm2 3x 35 mm2 3x35 mm2 + 1x16mm2 4x35 mm2 3x35 mm2 + 2x16mm2 4x35 mm2 + 1x16mm2 5x25 mm2
1x50 mm2 2x50 mm2 3x 50 mm2 3x50 mm2 + 1x25mm2 4x50 mm2 3x50 mm2 + 2x25mm2 4x50 mm2 + 1x25mm2 5x35 mm2
1x70 mm2 2x70 mm2 3x 70 mm2 3x70 mm2 + 1x35mm2 4x70 mm2 3x70 mm2 + 2x35mm2 4x70 mm2 + 1x35mm2 5x50 mm2
1x95 mm2 2x95 mm2 3x 95 mm2 3x95 mm2 + 1x50mm2 4x95 mm2 3x95 mm2 + 2x50mm2 4x95 mm2 + 1x50mm2 5x70 mm2
1x120 mm2 2x120 mm2 3x 120 mm2 3x120mm2 + 1x70mm2 4x120 mm2 3x120mm2 + 2x70mm2 4x120mm2 + 1x70mm2 5x95 mm2
1x150 mm2 2x150 mm2 3x 150 mm2 3x150mm2 + 1x70mm2 4x150 mm2 3x150mm2 + 2x70mm2 4x150mm2 + 1x70mm2
1x185 mm2 2x185 mm2 3x 185 mm2 3x185mm2 + 1x95mm2 4x185 mm2 3x185mm2 + 2x95mm2 4x185mm2 + 1x95mm2
1x240 mm2   3x 240 mm2 3x240mm2 + 1x120mm2 4x240 mm2 3x240mm2 + 2x120mm2 4x240mm2 + 1x120mm2
1x300 mm2   3x 300 mm2 3x300mm2 + 1x150mm2 4x300 mm2 3x300mm2 + 2x150mm2 4x300mm2 + 1x150mm2
1x400 mm2
1x500 mm2
