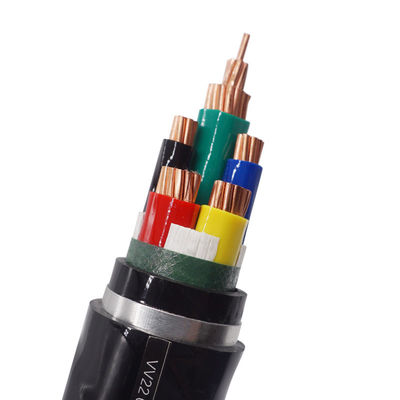

Copper Aluminum Conductor XLPE Insulated Cable Anti Flaming

Copper Aluminum Conductor XLPE Insulated Cable Anti Flaming

Products - XLPE Insulated Cable
  • High Light

    Aluminum Conductor XLPE Insulated Cable

    ,

    Anti Flaming XLPE Insulated Cable

    ,

    VDE 0.6kv XLPE Insulated Cable

  • Name
    Copper Conductor Cable
  • Conductor Material
    Copper
  • Standard
    IEC 60502-1
  • Outer Sheath
    PVC
  • Color
    Customized
  • Type
    XLPE Underground Cable
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/IEC/KEMA/VDE
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Iron-wooden Drum or Whole Wooden Drum
  • Delivery Time
    8-15 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100km per Month

Copper Aluminum Conductor XLPE Insulated Cable Anti Flaming

  • Copper Aluminum Conductor XLPE Insulated Cable Anti Flaming
Get Price Contact Now

Copper Aluminum Conductor Xlpe Power Cable





Product feature and purpose:

Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental stress,excellent electrical properties ,powerful resistance to
chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.In terms
of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large
industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.

Operative standard:

GB/T 12706,IEC 60502 and relevant domestic and international standard.For example,BS,VDE,JIS,AEIC,and so on.

Operational performance:

The maximum allowable operating temperature of the cable conductor:90 C in normal condition and 250 C in case of short circuit (maximum duration of short circuit is 5s).

short circuit (maximum duration of short circuit is 5s).

NO.of cores×section
(mm²)

Normal insulation

thickness(mm)

Normal thickness of

oversheath

Approximate overall

diameter of cable(mm)

Approximate weight

of cable(kg/km)
Cu AL
Unarmoured Armoured Unarmoured Armoured YJV YJV22 YJLV YJLV22
4×4 0.7 1.8 1.8 12.5 18.1 282 430 / /
4×6 0.7 1.8 1.8 14.7 17 383 545 / /
4×10 0.7 1.8 1.8 16.9 19.1 565 752 390 517
4×16 0.7 1.8 1.8 19.3 21.6 783 1020 416 663
4×25 0.9 1.8 1.8 23.5 25.7 1241 1502 593 902
4×35 0.9 1.8 1.8 26.7 28.7 1631 1957 776 1096
4×50 1.0 1.8 1.9 28.0 32.6 2080 2812 961 1770
4×70 1.1 2.0 2.1 33.2 37.5 2952 3796 1302 2222
4×95 1.1 2.1 2.3 38.0 42.6 3970 4962 1693 2757
4×120 1.2 2.3 2.4 40.9 46.4 4894 5913 2077 3363
4×150 1.4 2.4 2.6 46.0 51.3 5980 7170 2852 3878
4×185 1.6 2.6 2.7 52.5 57.8 7442 8802 3173 4618
4×240 1.7 2.8 3.0 59.4 64.6 9764 11289 4032 5782
4×300 1.8 3.0 3.1 66.2 71.6 12122 13856 4924 6735
4×400 2.0 3.3 3.4 73.8 80.3 15624 18407 6272 9313
4×500 2.2 3.5 3.7 89.3 96 19877 23264 7667 11062
4×630 2.4 3.8 4.0 99.6 106.3 25124 28895 9514 13293
