Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HOLD-ONE |
| Certification: | CE/IEC/KEMA/VDE |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Iron-wooden Drum or Whole Wooden Drum |
| Delivery Time: | 8-15 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100km per Month |
|
Detail Information |
|||
| Name: | Copper Conductor Cable | Conductor Material:: | Copper |
|---|---|---|---|
| Standard: | IEC 60502-1 | Outer Sheath:: | PVC |
| Color: | Customized | Type: | XLPE Underground Cable |
| High Light: | Insulated XLPE Power Cable,Armored XLPE Power Cable,Polyethylene XLPE Power Cable |
||
Product Description

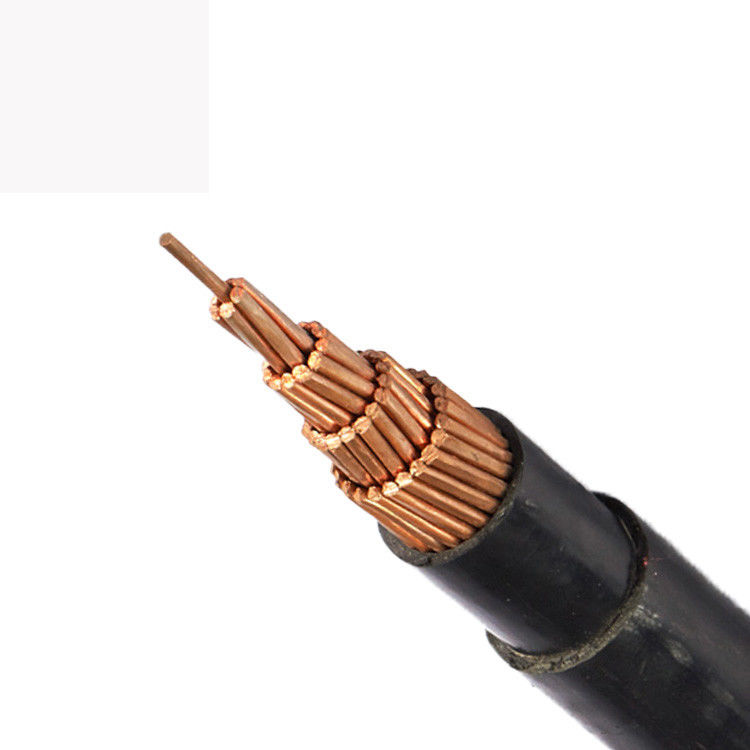

Armored insulated XLPE cable
What is XLPE cable?
XLPE cable stands for cross-linked polyethylene cable. It is a hydraulic pipe made of polyethylene plastic. XLPE has a 3D molecular bond structure and shape memory properties.
Physical and Electrical Characteristics
| No.cores x | Insulation | Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
| cross-sec. | thickness | thickness | approx. | approx. | |||
| Nominal | |||||||
| Phase | Neutral | value | |||||
| mm² | mm | mm | mm | mm | kg / km | A | A |
| 3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
| 3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
| 3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
| 3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
| 3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
| 3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 |
164 |
XLPE cable application
In short, XLPE cables are used in industries where wires and cables are exposed to the following conditions:
Extreme temperature conditions (high and low temperature)
High-voltage electrical applications
Wear and stress
Water and other liquids
Chemicals and other harmful substances
XLPE cables can be used in plumbing, mining and various electrical applications. Cross-linked polyethylene cables can also be found throughout the chemical industry as well as in the commercial and residential heating industries. Don't forget the ground maintenance of dental clinics and other medical institutions, stadiums and other places, etc.
What is the difference between XLPE insulation and PVC insulation?
As mentioned above, XLPE is a cross-linked polyethylene material. PVC stands for polyvinyl chloride insulation.
The main difference between the two is that XLPE can be used for high tension and low tension applications. Its structure has good wear resistance, stress resistance and other wear resistance. PVC insulation material cannot withstand that much pressure, which means it is only suitable for low-tension applications.
Other differences:
The life of XLPE insulation is longer than that of PVC insulation
Since XLPE does not contain chlorides, it is more environmentally friendly
XLPE insulation can withstand higher temperatures
Cross-linked polyethylene has higher moisture resistance
