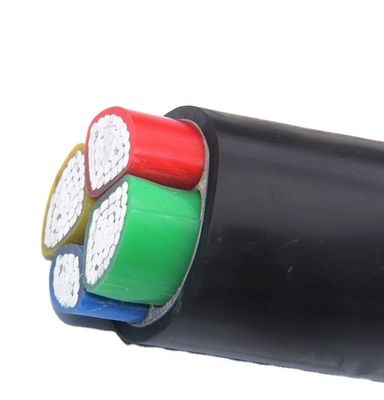

1KV Fire Resistant PVC XLPE Insulated Power Cable For Current Transmission

1KV Fire Resistant PVC XLPE Insulated Power Cable For Current Transmission

  • High Light

    PVC XLPE Insulated Power Cable


    1KV Fire Resistant XLPE Insulated Cable


    Current Transmission XLPE Insulated Cable

  • Name
    Copper Conductor Cable
  • Conductor Material
  • Standard
    IEC 60502-1
  • Outer Sheath
  • Color
  • Type
    XLPE Underground Cable
  • Place of Origin
  • Brand Name
  • Certification
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Iron-wooden Drum or Whole Wooden Drum
  • Delivery Time
    8-15 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100km per Month

1KV Fire Resistant PVC XLPE Insulated Power Cable For Current Transmission

PVC XLPE Insulated Power Cable


1. XLPE armored power cable complies with national standards and has passed CCC-China compulsory certification, which includes the re-regulation of national safety certificates

2. Scope of application: this product is suitable for AC rated voltage 0.6 / 1KV

3 The temperature of the conductor during working hours does not exceed 90 degrees Celsius

4. XLPE cables are mainly used for current transmission, laid in buildings, tunnels or directly underground, and can withstand external pressure

5. We can also customize wires and cables according to your requirements. You can determine the number of conductors and cross joints, as well as sheath and insulation

6. Specifications YJV
PVC insulated power cables and fire-resistant cables are suitable for fixed laying in transmission and distribution lines with AC 50Hz and rated voltage below 6KV.


Physical and Electrical Characteristics


No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139




Product manual:


1. Conductor: copper or aluminum.
2. Both armored and non-armored power cords are available.
3. Rated voltage: 0.6 / 1kV 3.6 / 6kV.
4. PVC or PE sheath.
5. Cable core number: one core (single core), two cores (double core), three cores,
Four cores (four equal area cores or three equal area cores and a small cross-section neutral core),
Five cores (five cores of equal area or three cores of equal cross-section and two neutral cores of smaller cross-sectional area).
6. Standards: Chinese national standards GB 12706 and GB 12666.6 or other special features, please obtain from customers.


Conditions of Use


1. The long-term allowable working temperature of the conductor shall not be higher than 70oC.
2. The maximum short-circuit temperature of the conductor (not more than 5 seconds) shall not be higher than 160 oC.
3. The laying of power cables is not restricted by the level drop, and the ambient temperature shall not be lower than 0 oC.
If this is the case, the cable should be preheated.
4. Perfect chemical stability, resistance to acid, alkali, grease, organic solvent and flame.
5. Light weight, good bending performance, easy installation and maintenance.
