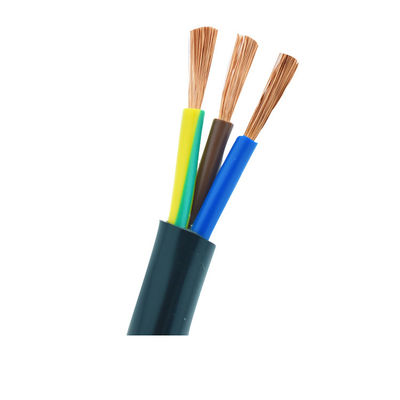

Insulated Copper Armored 3 Core Waterproof XLPE Cable

Insulated Copper Armored 3 Core Waterproof XLPE Cable

  • High Light

    3 Core Waterproof XLPE Cable

    ,

    Copper Armored Waterproof XLPE Cable

    ,

    Insulated Waterproof XLPE Cable

  • Name
    Copper Conductor Cable
  • Conductor Material
    Copper
  • Standard
    IEC 60502-1
  • Outer Sheath
    PVC
  • Color
    Customized
  • Type
    XLPE Underground Cable
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/IEC/KEMA/VDE
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    Iron-wooden Drum or Whole Wooden Drum
  • Delivery Time
    8-15 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100km per Month

Insulated Copper Armored 3 Core Waterproof XLPE Cable

Insulated Copper Armored XLPE 3-Core Waterproof Cable



What is XLPE?


XLPE is also called cross-linked polyethylene. In terms of electrical properties, it is a very good insulating material. XLPE has very high insulation resistance, stable dielectric constant and low dielectric constant at all frequencies.



Features and advantages of XLPE wire and cable:


In terms of flexibility, polyethylene can be rated as hard to very hard according to molecular weight and density (low density is the most flexible). The color version of black and special formula has excellent weather resistance.

Moisture-proof

Impressive electrical and physical properties
XLPE cables have excellent heat resistance and can carry large currents
The cable is light in weight, easy to install and maintain


Common applications of XLPE:


XLPE has the ability to work well in high-pressure environments and excellent moisture resistance, so you will usually find XLPE in the following applications:

Plumbing/ Plumbing
Cable insulation
mining



Physical and Electrical Characteristics



No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
  Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164





Packing & Shipping



All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.

The packing material is depended on the weight and size of cable.

The good information, manufacture information, and the client's information is firmly printed on each size of drum.



After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.

The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.



Our Services



♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.

♦ We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
