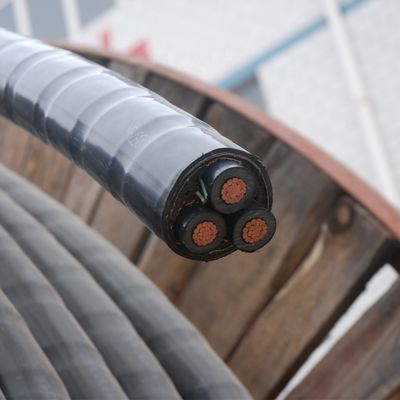

Cooper Conductor XLPE Insulated Power Cable YJV Cable
XLPE/cross-linked polyethylene Holdone is a leading supplier of custom and stock cross-linked polyethylene (XLPE) wires or cables. Holdone can provide XLPE wires and cables with various specifications and specifications of AWG size, rated voltage, compound, shielding structure and number of conductors, both in stock and customized.
What is cross-linked polyethylene/XLPE?
Cross-linked polyethylene, also known as XLPE, is a form of insulation produced by high temperature and high pressure. One way to produce XLPE insulation is by irradiating the compound. Another method is to use peroxide to chemically crosslink the compound. The most important attribute of XLPE is its electrical properties. Cables with XLPE insulation can carry large currents and high voltages. A common application of XLPE is medium and high voltage applications. The physical and electrical properties of XLPE make it an ideal choice for use in industrial environments.
Cable details
1.U0/U: 0.6/1kV
2.Standard: IEC60502, BS7870, GB/T12706
3.Max. working temperature: 90 °C , can be 110 °C as requirement
4.Conductor: Class 5 annealed bare copper flexible/soft
5.Insulation: XLPE/PVC
6.Screen: Copper wire braiding
7.Sheath: PVC
8. Cross section area: 1.5~630mm2
9. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E
10. Packing:Wooden drum or as requirement
11.Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE/CB
12.Remark: Flame retardant,fire resistance,low smoking and Halogen free,or other property can be avaliable
Physical and Electrical Characteristics
| No.cores x | Insulation | Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
| cross-sec. | thickness | thickness | approx. | approx. | |||
| Nominal | |||||||
| Phase | Neutral | value | |||||
| mm² | mm | mm | mm | mm | kg / km | A | A |
| 3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
| 3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
| 3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
| 3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
| 3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
| 3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 |
164 |
Packing & Shipping
All cable For exporting are well packed and protected by wooden drum or Wood and Steel Drum.
The packing material is depended on the weight and size of cable.
The good information, manufacture information, and the client's information is firmly printed on each size of drum.
After the well packed cable drums sent to Sea Port, they are loaded into 20 FT container or 40 FT container. All cable drum are firmly fixed by safety belt to make sure, no movement during the sea freight.
The size of the container is chosed according to weight of total loaded goods or as per the client's requirement.
Our Services
♦ We are the one of biggest manufacture of electric wire and power cable in southwest of China and has more than 20 years producing and marketing experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirement and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
Our products are sold all over the world, you can rest assured.
