Power Transmission 35mm Copper Core XLPE Insulated Cable

Products

Welding Torch Cable

Mr. Aric

atwood.lee@hold-one.com

86-- 18724796885

Contact Now

Power Transmission 35mm Copper Core XLPE Insulated Cable

MOQ:	500 m
Standard Packaging:	Iron-wooden Drum
Delivery Period:	14 days
Payment Method:	L/C, T/T, Western Union, MoneyGram,
Supply Capacity:	100km per Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

HOLD-ONE

Certification

CE/IEC/KEMA/VDE

Rated Voltage:

0.6/1kV

Cross Section Area:

35 Sqmm

Outer Sheath Color:

Black Or As Per Request

Core Mark:

Number Or Color Strip

Manufacturer:

Top 3 China Cable Manufacturer

Cable Mark:

Ink Printing Or Embossing

Highlight:

Copper Core XLPE Insulated Cable

35mm XLPE Insulated Cable

Power Transmission XLPE Insulated Cable

Product Description

0.6/1kV 35mm Copper Core XLPE Insulated Power Cable

Product description and application

A power cable is a component of one or more electrical conductors, usually fixed together with the entire sheath. This component is used to transmit power. Power cables can be installed in buildings as permanent wiring, buried in the ground, walking overhead or bare.

Used for transmission and distribution in 0.6/1kV to 8.7/15kV transmission and distribution systems. It is usually used in electric power, construction, mining, metallurgy, petrochemical industry and communications and other fields.

Physical and Electrical Characteristics

No.cores x	Insulation		Sheath	Outer Ø	weight	Current ratings in air 30℃	Current ratings buried 20℃
cross-sec.	thickness		thickness	approx.	approx.
			Nominal
	Phase	Neutral	value
mm²	mm	mm	mm	mm	kg / km	A	A
3×4+1×2.5	0.7	0.7	1.8	12.7	277	37	47
3×6+1×4	0.7	0.7	1.8	13.9	363	47	60
3×10+1×6	0.7	0.7	1.8	16.1	527	64	81
3×16+1×10	0.7	0.7	1.8	18.6	766	85	106
3×25+1×16	0.9	0.7	1.8	22.2	1140	113	137
3×35+1×16	0.9	0.7	1.8	24.6	1475	139	164

Application:

This product is suitable for power transmission and distribution with AC rated voltage 0.6/1kv and working frequency 50Hz.

Low-voltage power cables are used for power transmission and distribution in 1kV power transmission and distribution systems. It is widely used in electric power, mining, construction, metallurgy, petrochemical and communication fields, and completely replaces oil-immersed paper-insulated power cables.

XLPE insulated power cables XLPE insulated power cables have more advantages than paper insulated cables and PVC insulated cables. The cross-linked polyethylene cable has high electrical strength, mechanical strength, high aging resistance, chemical corrosion resistance, environmental stress, simple structure, convenient use, and can be used at high temperatures for a long time. It can be placed without a drop limit.

Advantages of XLPE cable: XLPE cable has a higher long-term working temperature and larger rated current, and under the same environment, the size (normal cross section) of XLPE cable may be 1 or 2 smaller than that of PVC cable. These not only improve the quality and performance of the product, but also reduce the production cost of the cable. Armored cable

The steel tape armored cable can enhance the mechanical properties of the cable, and the cable can withstand external mechanical pressure.

Steel belt armor/steel foil armor, steel wire armor/steel wire armor/SWA. Steel tape armored cable model: VV22, VV23, VLV22, VLV23, YJ V22, YJV23, YJLV22, YJLV23, ZR-VV22, NH-VV2 2, WDZ-YJV22, WDZ-YJV23, WDZ-YJY22

Operating characteristics

1) Working temperature

The maximum allowable continuous working temperature of the conductor shall not exceed 90℃

2) Conductor short-circuit temperature

Must not exceed 250 ℃. (The longest duration is 5 seconds)

3) Bending radius:

Bending radius of single-core cable: 20D Bending radius of multi-core cable: 15D

D = actual total diameter of the cable (mm)

4) Installation temperature:

The minimum installation temperature is 0°C.

Laying conditions and basic parameters used to calculate the rated current:

Laying method:

Ambient temperature in the air: 40℃ Directly buried: 25℃ Soil thermal resistance 1.0℃·m/W

Single core cable layout: parallel (side by side: 1D D = diameter)

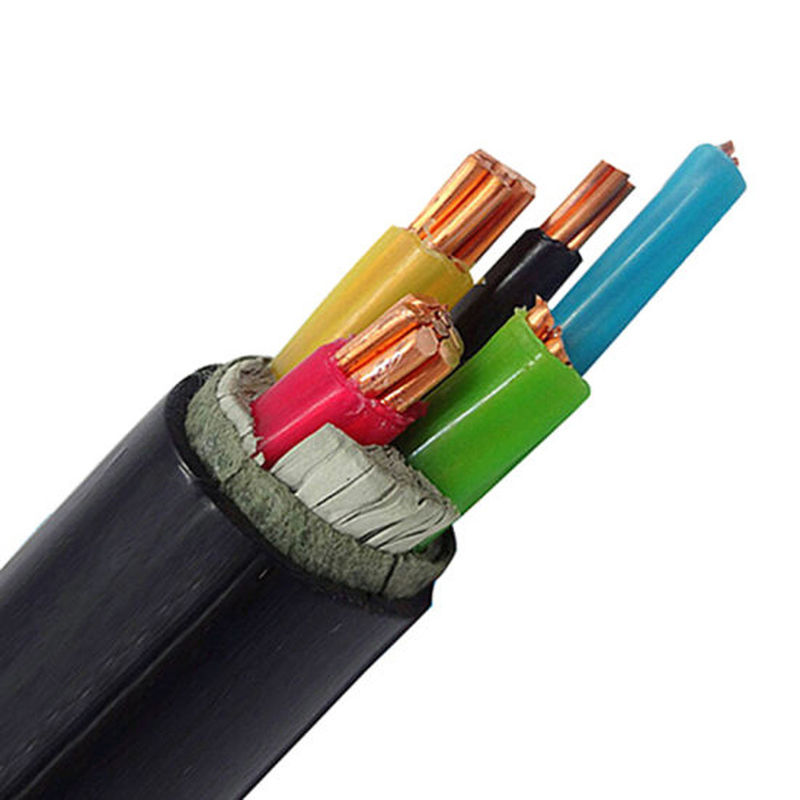

Power Transmission 35mm Copper Core XLPE Insulated Cable 0
