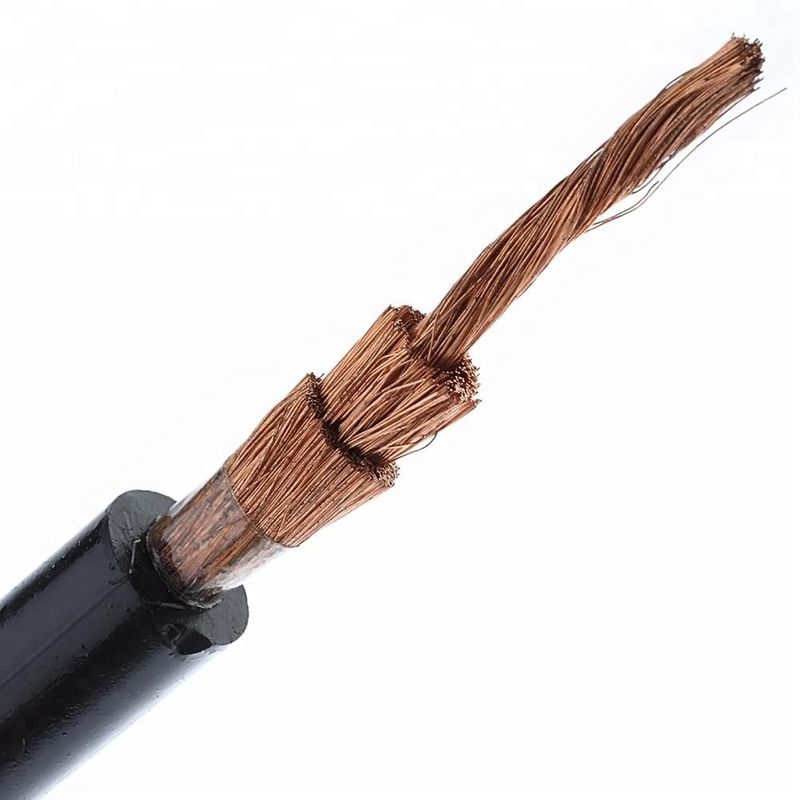

IEC60245 CCA Rubber Insulation 450V Electric Welding Cable

IEC60245 CCA Rubber Insulation 450V Electric Welding Cable

  • High Light

    450V Electric Welding Cable

    ,

    IEC60245 Electric Welding Cable

    ,

    450V 0 gauge welding wire

  • Name
    Electric Welding Cable
  • Insulation Material
    Rubber
  • Type
    Low Voltage
  • Application
    Construction
  • Conductor Material
    Copper
  • Jacket
    Rubber
  • Port
    QingDao ,Shang Hai , TianJin
  • Standard
    IEC60245
  • Place of Origin
    Henan, China
  • Brand Name
    HOLD-ONE
  • Model Number
    JS-006
  • Minimum Order Quantity
    5000 Meter/Meters
  • Price
    $0.50 - $6.50 / Meter
  • Packaging Details
    Steel-wood drum package, length as per customer's requirements
  • Supply Ability
    500000 Kilometer/Kilometers per Month

IEC60245 CCA Rubber Insulation 450V Electric Welding Cable

IEC60245 CCA Rubber Insulation 450V Electric Welding Cable


Specifications


450/750 Flexible Copper/CCA Rubber Insulation Electric Welding Cable
Specifications
450/750 PVC insulation CCA welding cable
voltage AC 200V~DC 400V
Standards: IEC60245

Welding Cable


Detailed Product Description
1th.       Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th.       Model, Names Main applications and Work In the Temperature




Model


Name


Main applications


Working temperature
of core ≤0C


YH


Natural Rubber Sheath for Welding Cable


Always used indoor


65


YHF


Neoprene Rubber Sheath Welding Cable


Always used outdoor


65


Synthetic elastomer Sheath Welding Cable


3th.       Standards: IEC60245
4th.       Specifications, Size, Weight and Technical Data




Conductor Nominal Section (mm2)


Conductive Core


Thickness of Section Sheath (mm)


Average Outer Diameter (mm2)


20oC Conductor Resistance≤(Ω/km)


Reference Weight(kg/km)


Number/Diameter of Core(mm)


Min


Max


YH


YHF


10


322/0.20


1.8


7.5


9.7


1.91


146


153.51


16


513/0.20


2.0


9.2


11.5


1.16


218.9


230.44


25


798/0.20


2.0


10.5


13.0


0.758


316.6


331.15


35


1121/0.20


2.0


11.5


14.5


0.536


426


439.87


50


1596/0.20


2.2


13.5


17.0


0.379


592.47


610.55


70


2214/0.20


2.4


15.0


19.5


0.268


790


817.52


95


2997/0.20


2.6


17.0


22.0


0.198


1066.17


1102.97


120


1702/0.30


2.8


19.0


24.0


0.161


1348.25


1392.55


150


2135/0.30


3.0


21.0


27.0


0.129


1678.5


1698.72


185


1443/0.40


3.2


22.0


29.0


0.106


1983.8


2020.74
