| MOQ: | 1000 Meter/Meters |
| Price: | $0.50 - $29.00 / Meter |
| Standard Packaging: | 1 1.1*1.1*1.1 wooden drum 2 1.8*1.8*1.1 wooden and steel drum 3 2.2*2.2*1.1 wooden and steel drum 4 As customer required |
| Supply Capacity: | 20 Kilometer/Kilometers per Day |

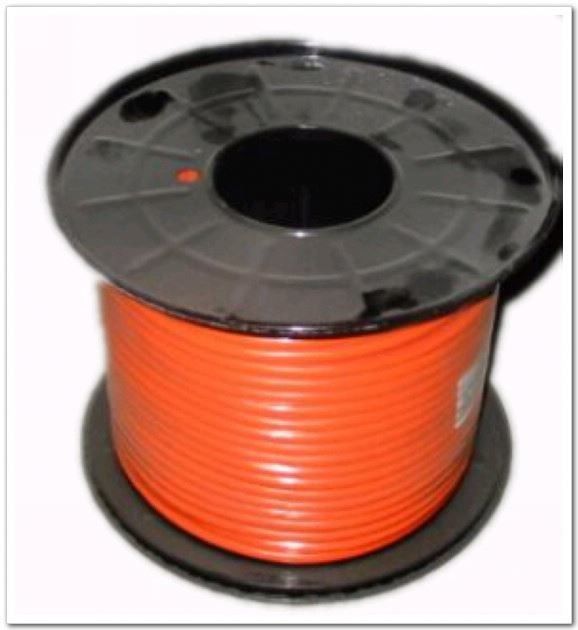

EPR Single Core 185 Sqmm 240 MmsqFlexible Welding Cable
Product Description
All the cable OEM SERVICE is welcome
0361TQ cable
Application:
Welding cable designed for the secondary (high current) connection to automatic or hand-held metal arc welding electrodes. It is suitable for flexible use under rugged conditions, on assembly lines and convey or systems, in machine tool and automatically operated line and spot welding machines. Power: Earthing/ return leads, power feeds to electrolytic plating process, Busbar connection, transformers, generators, aircraft servicing equipments etc.
(1) IEC Size: 16mm2, 25mm2, 35mm2, 50mm2,70mm2, 95mm2,120mm2.
(2) AWG Size: 6AWG,4AWG,2AWG,1AWG,1/0,2/0,3/0,4/0.
2. Name and IEC Standard
(1). Rubber Sheathed Welding Cable 245 IEC 81 IEC60245-6, H01N2-D
(2). Rubber Sheathed Welding Cable 245 IEC 82, which is made of chloroperene or the composite stretchy materials.
3. Conductor:
OFC/CCA/tinned copper wires or CCS Conductor
4. Jacket:
Rubber or PVC or TPE
5. Packing:
100m/roll or 200m/roll (As requested) Outer packing: 8 rolls/carton or 4 rolls/carton
|
Conductor Nominal Section (mm2) |
Conductive Core |
Thickness of Section Sheath (mm) |
Average Outer Diameter (mm2) |
200C Conductor Resistance≤(Ω/km) |
|
|
|
Number/Diameter of Core(mm) |
|
Min |
Max |
|
|
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
|
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
|
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
|
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
|
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
|
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
|
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
|
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
|
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
|
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
OEM is welcome
1) Minimum order quantity: 5 kilometers at least
2) Price: EXW/FOB/ CIF
3) Packing: 100m/roll or 500m/roll or as cus
4) Sample: Free sample is available for you
5) Individual Service: Can print your logo or brand name on cable
YH: Natural rubber sheath for welding cable
YHF: Horoprene rubber or other syntheitic rubber sheath welding cable
Working Temperature ≤ 60º C
