| MOQ: | Negotiable |
| Price: | Negotiable |
| Standard Packaging: | Iron-wooden Drum or Whole Wooden Drum |
| Delivery Period: | 8-15 days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 100km per Month |

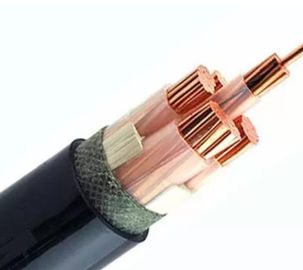

PVC Sheathed XLPE Insulated Cable With Bare Copper Class 2 Conductor
STANDARDS
International: IEC 60502-1
National:GB/ T 12706.1-2008
CONSTRUCTION:
1. CONDUCTOR
– Bare copper conductor, Class 2 to IEC 60228
2. INSULATION
– XLPE Compound
3. FILLER
– PP filler
4.Wrapping tape
In case of armoured cable:
5. INNER SHEATH
– PVC Compound
6. ARMOUR
– Galvanized Double Steel Tape.
7. OUTER SHEATH :
– PVC Compound
Sheath colour :
– Black
APPLICATIONS:
Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.
Parameters
|
No.cores x cross-sec. |
Insulation thickness |
Nominal Sheath thickness |
Outer Ø approx. |
weight approx. |
Current ratings in air 30℃ | Current ratings buried 20℃ | |
| Phase | Neutral | ||||||
| mm² | mm | mm | mm | mm | kg / km | A | A |
| 4×4＋1×2.5 | 0.7 | 0.7 | 1.8 | 14.2 | 320 | 38 | 48 |
| 4×6＋1×4.0 | 0.7 | 0.7 | 1.8 | 15.6 | 427 | 48 | 60 |
| 4×10＋1×6.0 | 0.7 | 0.7 | 1.8 | 18.1 | 636 | 66 | 81 |
| 4×16＋1×10 | 0.7 | 0.7 | 1.8 | 20.8 | 941 | 88 | 107 |
| 4×25＋1×16 | 0.9 | 0.7 | 1.8 | 24.9 | 1441 | 118 | 137 |
| 4×35＋1×16 | 0.9 | 0.7 | 1.8 | 27.1 | 1853 | 144 | 165 |
| 4×50＋1×25 | 1.0 | 0.9 | 1.9 | 31.6 | 2616 | 177 | 196 |
| 4×70＋1×35 | 1.1 | 0.9 | 2.1 | 36.5 | 3578 | 227 | 244 |
| 4×95＋1×50 | 1.1 | 1.0 | 2.2 | 41.6 | 4843 | 277 | 288 |
| 4×120＋1×70 | 1.2 | 1.1 | 2.4 | 46.3 | 6110 | 325 | 329 |
| 4×150＋1×70 | 1.4 | 1.1 | 2.5 | 51.2 | 7421 | 375 | 369 |
| 4×185＋1×95 | 1.6 | 1.1 | 2.7 | 56.8 | 9191 | 433 | 418 |
| 4×240＋1×120 | 1.7 | 1.2 | 2.9 | 63.2 | 11763 | 518 | 488 |
| 4×300＋1×150 | 1.8 | 1.4 | 3.1 | 70.0 | 14595 | 625 | 555 |
|
|
