Qingdao Yilan Cable Co., Ltd.

XLPE Insulated Low Voltage Power Cable , Copper Conductor 4 Core Power Cable

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: CE/IEC/KEMA/VDE
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Iron-wooden Drum or Whole Wooden Drum
Delivery Time: 8-15 days
Payment Terms: L/C, T/T
Supply Ability: 100km per Month
  • Detail Information
  • Product Description

Detail Information

Name: Low Voltage Power Cable Conductor Material:: Copper
Core: 4 Core Power Cable Outer Sheath:: PVC Sheathed
Working Degree: 90℃ Type: 0.6/1 KV
High Light:

xlpe power cable

,

cross linked polyethylene cable

Product Description

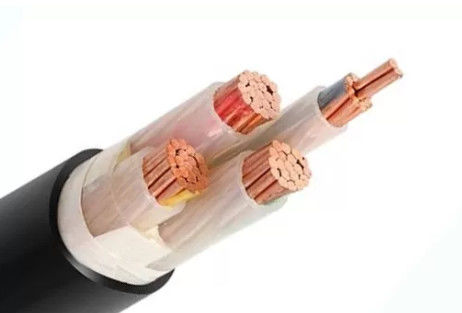

XLPE Insulated Low Voltage Power Cable , Copper Conductor 4 Core Power Cable



STANDARDS



International: IEC 60502-1
National:GB/ T 12706.1-2008



CONSTRUCTION:


1. CONDUCTOR
– Bare copper conductor, Class 2 to IEC 60228
2. INSULATION
– XLPE Compound
3. OUTER SHEATH :
– PVC Compound
Sheath colour :
– Black



APPLICATIONS:



Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.



ELECTRICAL CHARACTERISTICS



Rated Voltage Uo/U 0.6/1 kV
Maximum operating voltage 1.2 kV
Frequence 50 Hz
Test voltage : 3500 V

USAGE CHARACTERISTICS



Permissible operating temperature at conductor +90°C
short circuit temperature ( duration max. 5 s) 250 °C
Minimum installation temperature should not be lower than 0°C
Max. conductor permissible tensile stress 50 N/mm²
Minimum bending radius 15 x cable Ø
